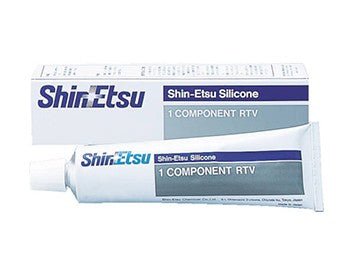

Shin-Etsu KE347W One-component RTV Sealant for Electrical and Electronic Components White
Shin-Etsu KE347W One-component RTV Sealant for Electrical and Electronic Components White

Shin-Etsu KE347W One-component RTV Sealant for Electrical and Electronic Components White

Size:
$0.00
$0.00
Shipping calculated at checkout.

This grade is quoted against your application and packaging size. Send us the substrates and volumes and we will come back with pricing and the current data sheet.

Request a quote Request data sheet

Detailed product description (Bold 16px)

Product Introduction (14px)

(14px) Shin-Etsu KE347W is a one-component silicone adhesive sealant, a white medium viscosity viscous product. A non-flowing silicone sealant with good operability.

The characteristics of deacetonization make it have the smell of acetone gas during the volatilization process , with quick drying and good sealing and heat resistance. Non-corrosive to metals and plastics.

Shin-Etsu KE347W is a low-hardness silicone sealant with a hardness of It is Shore A: 30, has good wear resistance and environmental resistance, acid and alkali corrosion resistance, and good shock absorption.

Product Application

Shin-Etsu KE347W is widely used in electrical insulation and has a wide applicable temperature range. Requirements for bonding, sealing and fixing of various electronic components and mechanisms; products with more such requirements. It has high and low temperature resistance, anti-aging, shock absorption and buffering, easy maintenance and excellent sealing and moisture-proof properties. Such as: electrical appliances, solar cells, batteries, hybrid integrated circuits, TC fans and components, electronic products, power, sensors, fluorescent lamps, membrane switches, LED display panels, electronic equipment, aviation systems, liquid crystal displays, cathode ray tubes, etc.

Shin-Etsu KE347W performance introduction

  1. Can maintain stable heat-resistant and cold-resistant electrical properties in places with unstable temperature and humidity;
  2. The temperature range used is extremely wide, and good performance can be maintained at -50~250閳?
  3. It has good resistance to ultraviolet rays, ozone, smoke and moisture, and is especially suitable for outdoor use; span >
  4. It has excellent shock resistance and chemical properties, and can effectively protect electronic parts.
  5. Weather resistance: One-component room temperature vulcanized silicone rubber is resistant to long-term exposure to the outdoors. They are virtually impervious to deterioration as they have excellent resistance to UV, ozone and moisture.
  6. Workability: These products are easy to use as they can be processed from their The tube (or other container) pops out and is used immediately.

Product Specifications

< td style="width: 47.7077%; height: 22px;">55 Pa·s < / tr>
Manufacturer ShinEtsu
Product model# KE -347W
Curing method Condensation moisture curing
Single Component/two-component Single-component
Color appearance White
Density specific gravity@23°C  1.04 g/cm3
Viscosity
Curing conditions 7 days @ 23C/50% RH
Debonding time 4 minutes
Shore hardness Shore A 30
Tensile strength 1.97 MPa
Elongation 300%@ Break
Shear strength 0.80 MPa
Volume resistivity 10 x 10^14 ohm-cm
Dielectric strength 20 kV/mm
Dielectric constant 2.5 @ 50Hz /span>
Dielectric loss factor td > 1x10-3 @ 50Hz
Thermal conductivity 0.21 W/m·K
Available temperature range -40 to + 180&deg ;C
