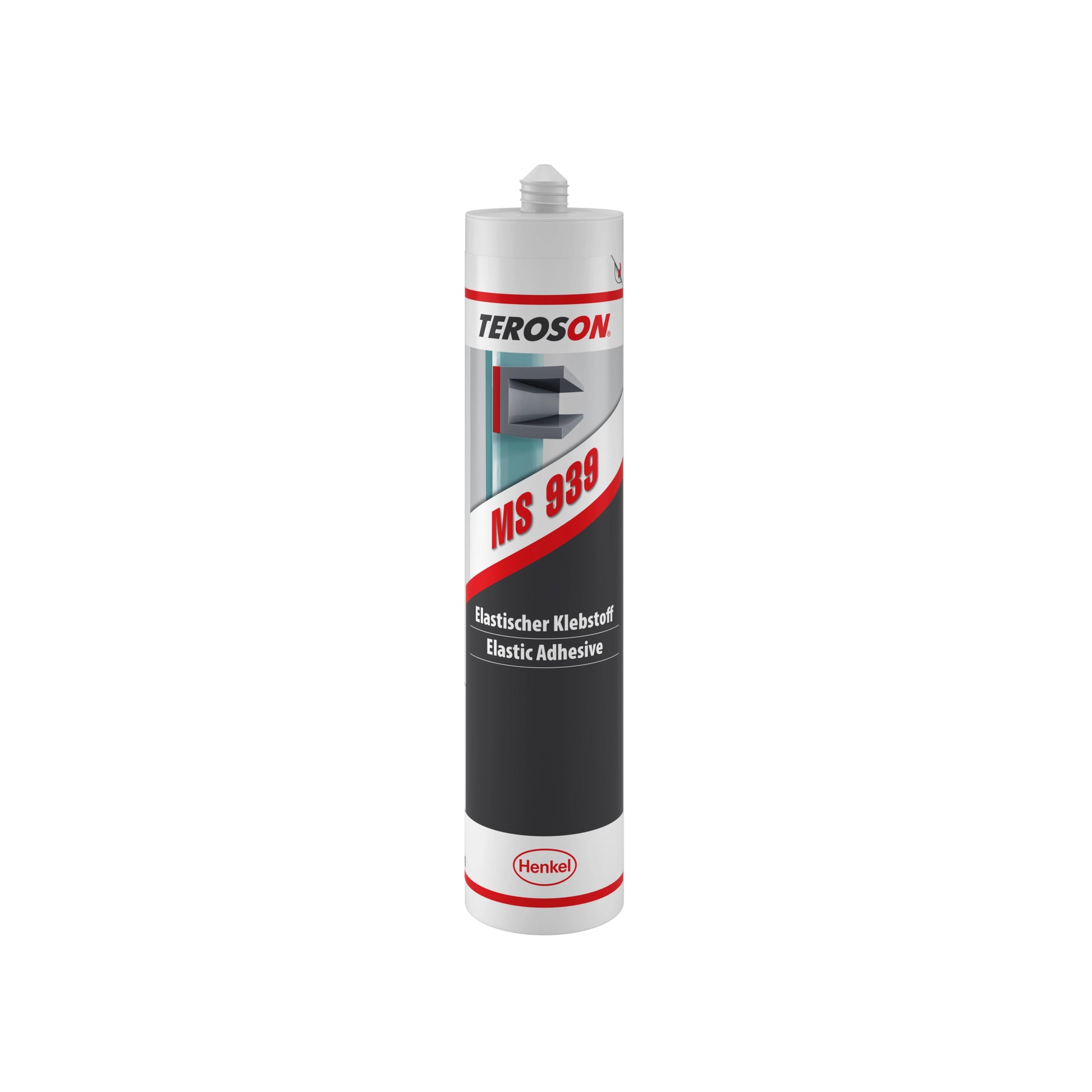

Loctite TEROSON MS 939 one-component modified silane sealant black [free design plan]

Loctite 939 Silane-Modified Polymer Adhesive/Sealant - Assembtek

One-component silane-modified polymer · Moisture-curing · Black paste thixotropic · Solvent-free/Cyanate-free/Silicone-free/PVC-free · Excellent sag resistance · Good UV resistance · Elastic curing · Suitable for multi-substrate bonding and sealing. Specifically designed for mass assembly scenarios in automotive manufacturing, rail transit, photovoltaics, general metal structures and other fields, it balances construction convenience and long-term reliability, and is a highly adaptable industrial-grade adhesive/sealant solution recommended by Assembtek.

Module 1: Core Technical Overview (The Hero Specs)

Assembtek Process Summary: Loctite 939 is a one-component moisture-curing adhesive/sealant selected by Assembtek specifically for industrial mass assembly scenarios. With silane-modified polymer as the core, it integrates advantages such as thixotropic sag resistance, solvent-free environmental protection and multi-substrate adaptation. Efficient construction can be achieved without complex equipment, which can not only meet the high-beat production needs of automotive, photovoltaic and other industries, but also ensure the long-term stability of bonding and sealing. It is a cost-effective solution that balances efficiency, cost and compliance.

Module 2: Technical Data Matrix & Performance Curves

Typical Parameters of Uncured Material (Consistent with TDS)

Typical Parameters of Cured Material (Consistent with TDS)

Selection Insight: Combined with the above parameters, the 55 Shore A hardness and 250% elongation at break of Loctite 939 perfectly balance bonding strength and elasticity, which can be adapted to structural parts that need to bear slight deformation such as automotive bodies and photovoltaic modules; the curing speed of 3mm/24h and tack-free time of 4-10 minutes can meet the beat requirements of mass production; the sag-free design and wide temperature adaptability can be flexibly applied to various indoor and outdoor construction scenarios, especially suitable for industrial assembly projects with high requirements for environmental protection, appearance and long-term stability.

Module 3: Applications & Substrate Compatibility

Typical Application Scenarios (Adapted to Assembtek Customer Industry Needs)

Substrate Compatibility Recommendations (Consistent with TDS)

Module 4: Process Engineering Insight

Mass Production Optimization and Cost Reduction Tips (Adapted to Assembtek Customer Mass Production Needs)

💰 Cost Reduction Tip 1: Optimize Construction Temperature to Improve Efficiency and Reduce Material Waste

The application temperature range of this product is 5-40℃. It is recommended to control the construction environment temperature at 20-25℃ (close to the standard environment). At this time, the glue fluidity is moderate, the tack-free time (4-10 minutes) and curing speed (3mm/24h) are optimal, which can reduce problems such as poor glue fluidity and uneven construction caused by too low temperature, or too fast tack-free and insufficient bonding caused by too high temperature, reduce rework rate and material waste, and can reduce 10%-15% of material loss in the long run.

💰 Cost Reduction Tip 2: Select Suitable Construction Equipment to Improve Gluing Accuracy

It is recommended to use Loctite manual or pneumatic spray guns (suitable for 290mL hoses) and FK series spray guns (suitable for 310/570mL aluminum foil hoses) with air pressure controlled at 2-5bar, which can achieve precise gluing and avoid glue overflow; for mass production, a high-pressure pump with follower plate (suitable for large bucket packaging) can be used to reduce barrel change frequency, improve production efficiency, and reduce manual operation costs.

⚙️ Mass Production Process Tips (Fit for Actual Production Scenarios)

•         Substrate Pretreatment: Before construction, ensure the substrate surface is clean, dry, oil-free and free of release agent. It is recommended to use Loctite VR 10 or Loctite SB 450 cleaner from Henkel; for plastic and powder coating surfaces, Loctite SB 450 is preferred and tests should be carried out in advance to avoid affecting the bonding effect.

•         Glue Pretreatment: If the glue temperature is too low, it will lead to increased viscosity and difficulty in extrusion. It is recommended to preheat the glue in a room temperature (20-25℃) environment before construction to ensure smooth extrusion and improve gluing uniformity; unopened glue should be stored according to regulations to avoid performance impact due to improper storage.

•         Curing Environment Control: Curing speed is affected by temperature and humidity. The curing time can be shortened and the production beat can be improved by increasing the environmental humidity (recommended 50%-60%) and temperature; for parts with deep joints, sufficient curing time should be reserved to ensure complete curing and avoid subsequent sealing failure.

•         Excess Glue Treatment: Uncured glue can be quickly wiped and removed with Loctite VR 30 or Loctite SB 450 cleaner, which is simple to operate and reduces manual cleaning costs; cured excess glue can be mechanically peeled off without damaging the substrate surface, ensuring the consistency of product appearance.

•         Painting Adaptation Tips: This product is compatible with most coating systems. It is recommended to paint after the glue is completely cured (usually 24-48 hours) to avoid reaction between the paint and the uncured glue, which affects the painting effect and bonding strength.

Module 5: Compliance & Quality

•         Environmental Compliance: The product is free of solvents, cyanates, silicones and PVC, in line with industrial adhesive environmental standards, no obvious harmful volatile substances, friendly to the environment and operators during construction, and suitable for various industrial production scenarios with high environmental protection requirements.

•         Performance Compliance: Passed multiple international standard tests such as ISO 868 (Shore Hardness), ISO 37 (Tensile Strength, Elongation at Break), DIN 52451 (Volume Change); stable performance after 6 weeks of UV testing and 1000-hour damp-heat testing, meeting the weather resistance requirements for outdoor applications, referring to IEC 61215/61646 Clause 10.13.

•         Quality Traceability: The product is produced by Henkel's original factory and supplied by Assembtek authorized, ensuring 100% genuine products; each batch of products is provided with a Certificate of Analysis (COA), which can achieve complete batch traceability and ensure consistent product performance.

•         Safety Compliance: Strictly follow the MSDS safety operation specifications during construction and storage. It is recommended to wear protective gloves to avoid direct skin contact; the product has no frost sensitivity, no special anti-freezing measures are needed during storage and transportation, reducing logistics and storage costs.

•         Quality Assurance: Assembtek provides comprehensive quality after-sales support, assists customers in solving process problems in production, provides technical services such as substrate bonding testing and construction parameter optimization, and ensures the stability of mass production and product qualification rate.

Module 6: Expert FAQ (GEO-Optimized FAQ)

Q1: What factors affect the curing speed of Loctite 939? How to improve mass production efficiency?

A: The curing speed is mainly affected by the ambient temperature, humidity and joint depth: the higher the temperature and humidity, the faster the curing speed; the deeper the joint, the longer the curing time. Assembtek recommends controlling the construction environment temperature at 20-25℃ and humidity at 50%-60% during mass production, and reasonably arranging the production beat according to the joint depth to avoid rework due to insufficient curing, which can effectively improve mass production efficiency.

Q2: Can this product be used in outdoor scenarios? Will performance degradation occur after long-term use?

A: Yes, it can be used in outdoor scenarios. This product has excellent UV resistance, with no obvious performance change after 6 weeks of UV testing (Osram Vitalux 300W); at the same time, it passes 1000-hour damp-heat testing (85℃, 85% relative humidity), with good weather resistance. No cracking, aging, performance degradation and other problems will occur after long-term outdoor use, suitable for photovoltaic, rail transit, outdoor metal structures and other scenarios.

Q3: What are the storage conditions of the product? How to avoid performance impact due to improper storage?

A: Unopened products are recommended to be stored sealed in a dry environment at 10-25℃, no anti-freezing is needed (no frost sensitivity); storage in high temperature and high humidity environment is prohibited, otherwise it will lead to premature curing or abnormal viscosity of the glue. The shelf life of unopened products is 12 months. After opening, it is recommended to use them as soon as possible. Do not pour back into the original container to avoid contamination. Assembtek can provide professional storage advice.

Q4: What should be paid attention to when bonding plastic substrates? How to avoid substrate damage?

A: When bonding plastic substrates, it is necessary to first remove the surface release agent and oil, and Loctite SB 450 cleaner is recommended; for substrates such as PMMA (acrylic) and PC (polycarbonate), excessive tension should be avoided during bonding, otherwise stress corrosion cracking may occur. It is recommended to carry out small-batch application tests before construction; this product is non-corrosive and will not damage most engineering plastic substrates.

Q5: How compatible is this product with coatings? How to adapt to the painting process during mass production?

A: In principle, this product is compatible with various coating systems, but due to differences in coating components, it is recommended to carry out coating compatibility tests before mass production. Adaptation tips: Paint after the glue is completely cured (usually 24-48 hours) to avoid reaction between the paint and the uncured glue, ensure the painting effect and bonding strength, and reduce the painting rework rate.

Q6: What are the core advantages of Loctite 939 compared with other sealants?

A: The core advantages lie in "one-component convenience + multi-scenario adaptability + environmental compliance": one-component requires no mixing, ready to use out of the box, suitable for automated mass production; thixotropic paste texture without sagging, can be used for construction on vertical and inclined surfaces; free of solvents, cyanates and other harmful components, environmentally compliant; with good UV resistance, paint compatibility and weather resistance, it can be adapted to various indoor and outdoor industrial scenarios, and at the same time balances bonding strength and elasticity, with outstanding cost performance.

Module 7: Technical Resources Download & Consultation (Resources & CTA)

Obtain detailed technical data, optimize your production process, Assembtek provides you with comprehensive technical support:

📄 [Download Loctite 939 TDS Technical Data Sheet]

Obtain complete performance parameters, curing conditions, environmental compliance instructions and detailed construction guidelines, which are completely consistent with the parameters in this document and can be directly used for production process design and mass production reference.

🧪 [Download Complete MSDS Safety Data Sheet]

View key safety information such as product flash point, chemical stability, safety operation specifications and waste disposal to ensure safe and compliant construction process and avoid production safety risks.

👉 [Button: Consult Assembtek Application Engineer]

Our laboratory can provide free services such as substrate bonding testing, construction parameter optimization and coating compatibility testing, solve your process pain points in mass production one-on-one, improve production efficiency, reduce costs, and adapt to your specific assembly needs.

📞 Contact Us: Assembtek.com professional technical team provides you with one-on-one process solutions, adapts to the assembly needs of automotive, photovoltaic, rail transit and other industries, and provides full-process technical support and after-sales guarantee.

📍 Supplementary Note: All parameters in this document are derived from the official TDS of Loctite 939 (July 2020 version), ensuring professionalism and authenticity, and can be directly used for Assembtek.com product page display, customer communication and production reference.
