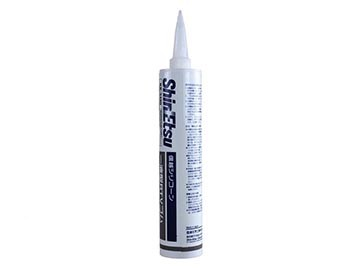

Shin-Etsu KE1861 A/B two-component RTV potting compound for electrical and electronic components gray
Shin-Etsu KE1861 A/B two-component RTV potting compound for electrical and electronic components gray

Shin-Etsu KE1861 A/B two-component RTV potting compound for electrical and electronic components gray

Size:
$0.00
$0.00
Shipping calculated at checkout.

This grade is quoted against your application and packaging size. Send us the substrates and volumes and we will come back with pricing and the current data sheet.

Request a quote Request data sheet

Detailed product description

Product Introduction

Shin-Etsu KE1861 A/B is a two-component silicone adhesive potting glue. It is a silicone potting glue with good fluidity for general industrial applications.

Shin-Etsu KE1861 A/B is a thermally conductive silicone potting compound. The hardness after curing is Shore A: 75, with good wear resistance and environmental resistance, acid and alkali corrosion resistance, and good shock absorption.

Product Application

Shin-Etsu KE1861 A/B is widely used in electrical insulation and has a wide applicable temperature range. Requirements for bonding, sealing and fixing of various electronic components and mechanisms; products with more such requirements. It has high and low temperature resistance, anti-aging, shock absorption and buffering, easy maintenance and excellent sealing and moisture-proof properties. Such as: electrical appliances, solar cells, batteries, hybrid integrated circuits, TC fans and components, electronic products, power, sensors, fluorescent lamps, membrane switches, LED display panels, electronic equipment, aviation systems, liquid crystal displays, cathode ray tubes, etc.

Shin-Etsu KE1861 A/B performance introduction

       1. The same characteristics as one-component RTV: electrical characteristics, heat and cold resistance, vibration resistance, weather resistance, curing type, etc.
       2. Layer curability: Deep curing can be performed on the surface and inside at the same time, regardless of the thickness of the rubber.
       3. Curing speed adjustability: The curing speed can be adjusted by changing the type or amount of curing agent. or heat.
       4. Storage: The base compound and curing agent are stored separately, so the product will not change during storage It will not become unusable due to curing. Two-component RTV rubber can be stored for a long time.

Product Specifications

< td style="width: 47.7077%; height: 22px;">Dielectric strength
< span style="font-size: 14px;">Manufacturer ShinEtsu
Product model # KE-1861A/B
Curing method Thermal curing
Single component/double Component Two-component
Color appearance Gray
Density specific gravity@23°C  2.22 g/cm3
Viscosity< /td> 50 Pa·s
Mixing ratio 100 : 100
Cure conditions 1hr @ 120C
Working hours 5 Hours
Shore hardness Shore A 75< /td>
Tensile strength 6.4 MPa
Elongation td > 80%@ broken
Shear strength 1.00 MPa
Volume resistivity 10 TΩ·m
25 kV/mm
Dielectric constant 4.5 @ 50Hz
Dielectric loss factor 2x10-3 @ 50Hz
Thermal conductivity 0.83 W/m·K
Available temperature range < span style="font-size: 14px;">-40 to +180°C



Spec // as published by the manufacturer

At a glance

Product type
Potting Compound
Brand
Shin-Etsu
Chemistry
Silicone
Cure mechanism
Moisture Curing
Viscosity band
10000+

Substrates in scope

CeramicGlassMetalSynthetic Rubber

Performance focus

High Temperature ResistanceLow Temperature ResistanceMoisture ResistanceWater Resistance

Declared by manufacturer

RoHSREACH

Values are as published by the manufacturer for this grade. They describe the product family, not a test report for your assembly — ask us for the current data sheet before you design against them.
