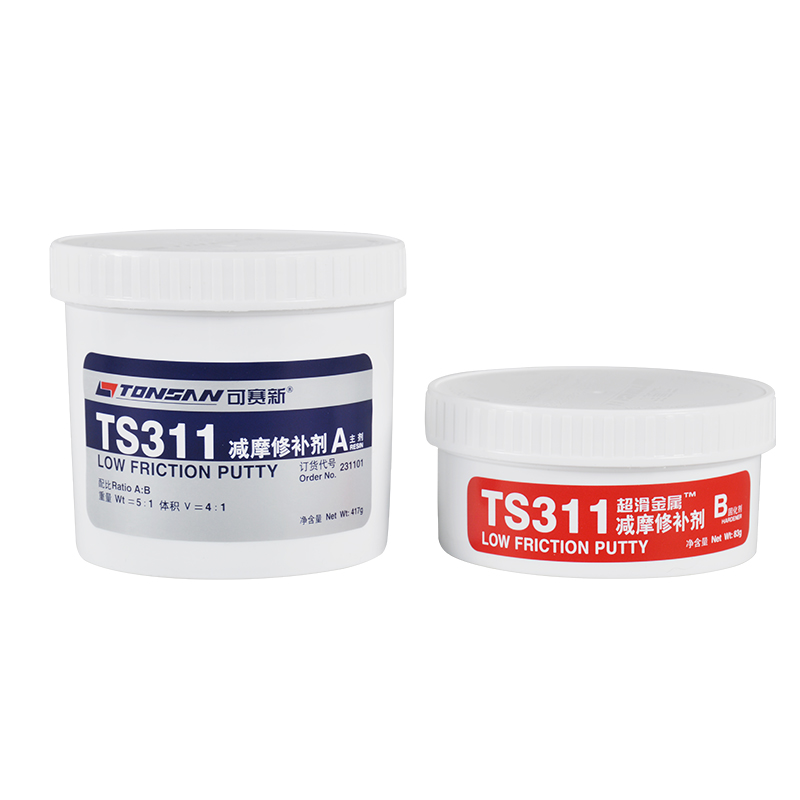

TONSAN TS311 anti-wear repair agent black
Request a Technical Data Sheet
Tell us about your application and our engineers will follow up with the TDS and application guidance.
Request a Technical Data Sheet
Tell us about your application and our engineers will follow up with the TDS and application guidance.
- Regular price
- $0.00
- Sale price
- $0.00
- Regular price
-
Shipping calculated at checkout.
Detailed product description
Product Introduction
Tianshan TONSAN® TS311 is a two-component, clay-like material with high-performance ultra-fine anti-friction lubricating material as the aggregate. The facade does not flow. After curing, the coating is self-lubricating, anti-friction and wear, and can be machined. Processing and other properties, used to repair surface scratches and wear of machine tool guide rails, hydraulic cylinders, piston rods, bushings, bearing seat support surfaces and other parts.
Product Application
Tianshan TONSAN® anti-friction coating and positioning potting series products are polymer alloy composite materials with high-performance anti-friction materials as the main materials. They are used in the coating production of equipment sliding mating surfaces and various mating surfaces. Positioning and potting between.
Tianshan TS311 performance introduction
1. Increase the contact area between the guide rail surface and the base body
2. Contains special materials, self-coating Excellent lubrication performance
3. Excellent anti-crawling performance
  ; 4. High bonding strength with metal
5. High impact resistance
6. Low shrinkage
7. Comply with JB/T3578-2007 "Sliding Guide Rails" General Technical Principles of Epoxy Coating Materials闁?/span>
8. Comply with JB/T3579-2007 "General Technical Conditions for Epoxy Coated Sliding Guides"< /span>
9. Comply with JB/T11566-2013 "Positioning Glue for Machine Tools"
Product Specifications
| Manufacturer< /span> | Tianshan TONSAN® | < /tr>
| Product model < /td> | TS311 |
| Curing method | Room temperature curing |
| Two-component | |
| Color appearance | Black |
| Density proportion@23°C | 1.56 g/cm3 |
| Weight ratio (A : B ) | 5 : 1 |
| Operating time 50g mixing | 40-70 min |
| Compressive strength | 100 MPa |
| Shear Strength | 21 MPa |
| < span style="font-size: 14px;">Hardness (Shore D) | 82 |
| Friction coefficient | 0.030< /span > |
| Grind Mark width | 1.68mm |
| Wear rate span> | 2.4×10-8 mm< sup> 3/N · m |
| < span style="font-size: 14px;">Curing time required before mold removal or machining | 16 h |
| < span style="font-size: 14px;">Available temperature range | -60 to +120°C |
