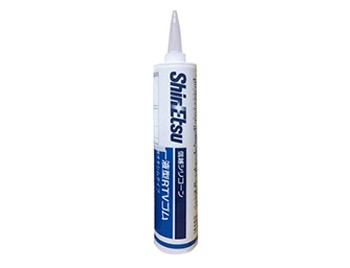

Shin-Etsu KE3479 One-component RTV Sealant for Electrical and Electronic Components Transparent
Shin-Etsu KE3479 One-component RTV Sealant for Electrical and Electronic Components Transparent

Shin-Etsu KE3479 One-component RTV Sealant for Electrical and Electronic Components Transparent

Size:
$0.00
$0.00
Shipping calculated at checkout.

This grade is quoted against your application and packaging size. Send us the substrates and volumes and we will come back with pricing and the current data sheet.

Request a quote Request data sheet

Detailed product description

Product Introduction

Shin-Etsu KE3479 is a one-component silicone adhesive sealant, a transparent and high-viscosity product, It is a kind of silicone sealant with good fluidity in general industry.

The characteristics of deacetonization make it have The smell of acetone gas, quick drying and good sealing and heat resistance. Non-corrosive to metals and plastics.

Shin-Etsu KE3479 is a low-hardness silicone sealant with a hardness of It is Shore A: 30, has good wear resistance and environmental resistance, acid and alkali corrosion resistance, and good shock absorption.

Product Application

Shin-Etsu KE3479 is widely used in electrical insulation and has a wide applicable temperature range. Requirements for bonding, sealing and fixing of various electronic components and mechanisms; products with more such requirements. It has high and low temperature resistance, anti-aging, shock absorption and buffering, easy maintenance and excellent sealing and moisture-proof properties. Such as: electrical appliances, solar cells, batteries, hybrid integrated circuits, TC fans and components, electronic products, power, sensors, fluorescent lamps, membrane switches, LED display panels, electronic equipment, aviation systems, liquid crystal displays, cathode ray tubes, etc.

Shin-Etsu KE3479 performance introduction

   1. Electrical properties: They have outstanding electrical properties in terms of volume resistivity and voltage resistance.
   2. Heat and cold resistance: they can be used in a wide temperature range (-40°C to +180°C).
   3. Impact resistance: Cured rubber has excellent rubber elasticity and absorbs vibration and impact.
   4. Weather resistance: One-component room temperature vulcanized silicone rubber will hardly deteriorate when exposed to the outdoors for a long time because they have excellent UV, ozone and moisture resistance.
   5. Processability: These products are easy to use because they can be popped out of their tubes (or other containers) and used immediately.

Product Specifications< /strong>

tr >
Manufacturer ShinEtsu
Product model KE-3479
Curing method Room temperature curing
< span style="font-size: 14px;">Single component/two components Single component
Color appearance Transparent
Density specific gravity@23°C  1.06 g/ cm 3
Viscosity 75 Pa&middot ;s
Cure conditions 7 days @ 23C/50 % RH
Debonding time 2 minutes < /td>
Shore hardness< /span> Shore A 30
Tensile strength< / td> 2.5 MPa
Elongation 350%@ break
Shear strength 1.50 MPa
Volume resistivity 2 TΩ·m
Dielectric constant 2.9 @ 50Hz
Dielectric loss factor 3x10-3 @ 50Hz
Thermal conductivity < span style="font-size: 14px;">0.21 W/m·K
Available temperature range -40 to +180°C



Spec // as published by the manufacturer

At a glance

Product type
Sealant
Brand
Shin-Etsu
Chemistry
Silicone
Cure mechanism
Moisture Curing
Viscosity band
10000+

Substrates in scope

CeramicGlassMetalSynthetic Rubber

Performance focus

Moisture ResistanceHigh Temperature ResistanceLow Temperature ResistanceWater Resistance

Declared by manufacturer

RoHSREACH

Values are as published by the manufacturer for this grade. They describe the product family, not a test report for your assembly — ask us for the current data sheet before you design against them.
