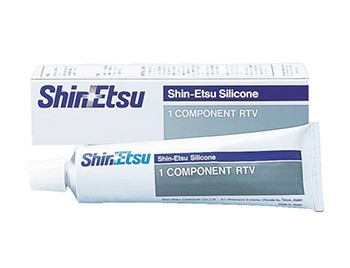

Shin-Etsu KE3475T one-component RTV sealant for coating circuit boards and electronic components, transparent

Detailed product description

Product Introduction

Shin-Etsu KE-3475T is a one-component silicone adhesive sealant, a transparent, low-viscosity, viscous product. It is a non-flowing, operable silicone sealant.

The characteristics of deacetonization make it have the smell of acetone gas during the volatilization process , with quick drying and good sealing and heat resistance. Non-corrosive to metals and plastics.

Shin-Etsu KE-3475T is a low-hardness organic silicone sealant, cured The rear hardness is Shore A: 17, with good wear resistance and environmental resistance, acid and alkali corrosion resistance, and good shock absorption.

Product Application

Shin-Etsu KE-3475T is widely used in electrical insulation and has a wide applicable temperature range. Requirements for bonding, sealing and fixing of various electronic components and mechanisms; products with more such requirements. It has high and low temperature resistance, anti-aging, shock absorption and buffering, easy maintenance and excellent sealing and moisture-proof properties. Such as: electrical appliances, solar cells, batteries, hybrid integrated circuits, TC fans and components, electronic products, power, sensors, fluorescent lamps, membrane switches, LED display panels, electronic equipment, aviation systems, liquid crystal displays, cathode ray tubes, etc.

Shin-Etsu KE-3475T performance introduction

1. Can maintain stable heat-resistant and cold-resistant electrical properties in places with unstable temperature and humidity;
< li style="line-height: 1.5;">It has a wide temperature range and can maintain good performance at -50~250閳?< / li>
2. It has good resistance to ultraviolet rays, ozone, smoke and moisture, and is especially suitable for outdoor use; /span>
3. Excellent in shock resistance and chemical properties, it can very effectively protect electronic parts .
4. Weather resistance: One-component room temperature vulcanized silicone rubber is resistant to long-term exposure to the outdoors. They are virtually impervious to deterioration as they have excellent resistance to UV, ozone and moisture.
5. Workability: These products are easy to use as they can be processed from their The tube (or other container) pops out and is used immediately.

Product Specifications

< td style="width: 47.7077%; height: 22px;">0.40 MPa < / tr> < tr style="height: 22px;"> < td style="width: 47.7077%; height: 22px;">3.0 @ 50Hz < tr style="height: 22px;"> < td style="width: 47.7077%; height: 22px;">-40 to +180°C tbody >

Manufacturer	ShinEtsu
Product model	KE- 3475T
Curing method	Condensation moisture curing
Single group Part/two-component	Single-component< /td>
Color appearance< /span>	Transparent
Density proportion@23°C	1.01 g/cm3
Viscosity	2500 cps
Cure conditions	72hr @ 23C/50% RH
< span style="font-size: 14px;">Debonding time	5 minutes
Shore hardness	Shore A 30 span>
Tensile strength	0.8 MPa
Elongation	180%
Shear strength
Volume resistivity	3
Dielectric strength /td>	22 KV/mm
Dielectric constant
Dielectric loss factor	3x10-3 @ 50Hz
Available temperature range
