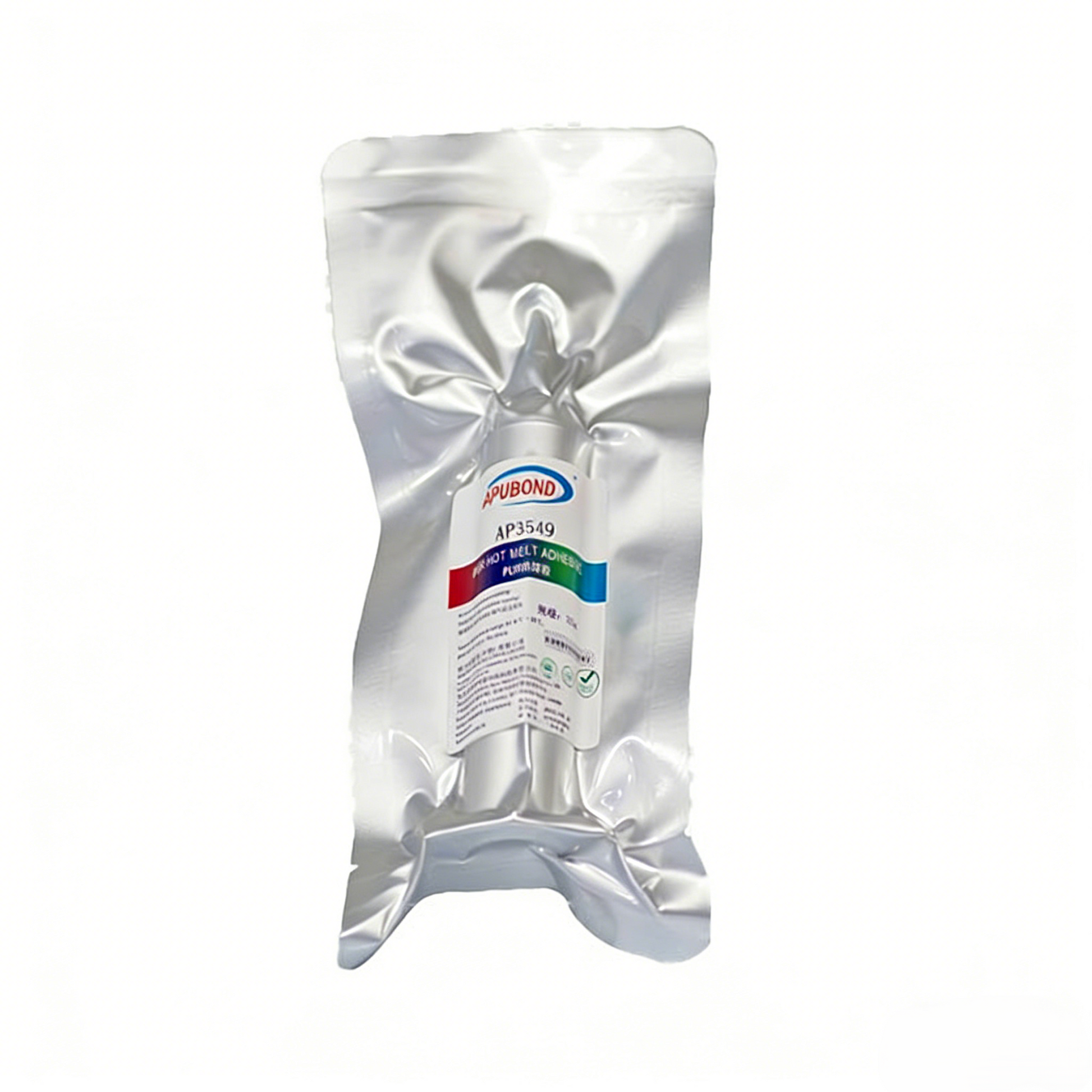

APUBOND® AP3549: Ultra-Flexible Structural PUR Hot Melt for Wearables & Acoustic Assembly

Section 1: Technical Overview

APUBOND AP3549 is a high-performance, single-component, moisture-curing Reactive Polyurethane (PUR) hot melt adhesive. Specially designed for precision electronics that demand extreme elongation and long-term reliability, it excels in sealing and structural bonding for smartwatches, premium audio systems, and high-end headphones.

• 100% Solids Content: Solvent-free formulation, eco-friendly and compliant with global safety standards.
• Extreme Elongation: Breakthrough flexibility with >750% elongation, providing superior shock absorption for mobile and wearable devices.
• Optimized Assembly Window: Perfectly balanced open time and initial tack, tailored for micro-dispensing and high-precision alignment.
• Comprehensive Reliability: Outstanding resistance to thermal cycling, moisture, and chemical exposure, ensuring durability in diverse daily-use environments.

Section 2: Technical Data Matrix

The following data are typical values based on standard laboratory environments (25℃,50%RH ).

Engineering Selection Insight: With >750% elongation, AP3549 is a market leader in impact resistance—surpassing many standard structural PURs. For wearables and headphones prone to drops, this extreme flexibility acts as a "structural cushion," protecting delicate internal sensors and components while maintaining a robust seal.

Section 3: Applications & Substrate Compatibility

AP3549 is engineered for versatility in the high-end electronics sector:

• Smart Wearables: Ideal for smartwatch mid-frame bonding, back-cover sealing, and sensor fixation where weather resistance is critical.
• Premium Audio & Speakers: Used for acoustic chamber sealing and dust-mesh fixing; its high damping properties help suppress acoustic resonance.
• Headphones & Earbuds: Structural bonding for earcups and strain relief for cable exits.
• Substrate Versatility: Achieves >8.6 MPa shear strength on PC (Polycarbonate). For PA (Nylon) and Aluminum alloys, performance can be further enhanced with Plasma surface treatment.

Section 4: Process Engineering Insight

Assembtek’s technical team offers the following strategies for optimizing mass production:

• AOI Integration Tip: The built-in fluorescence allows for Automated Optical Inspection (AOI). We recommend implementing UV sensors on your line to ensure 100% dispensing consistency and zero-gap sealing.
• Dispensing Parameters: For needle dispensing, maintain a temperature of 110-125°C  . If production pauses for >1 hour, reduce equipment temperature to 90°C  to prevent viscosity drift.
• Throughput Optimization: Curing speed is significantly accelerated by humidity. Maintaining the workshop at 23-28°C  and 50-70%RH allows the adhesive to reach 84.9% strength within 24 hours, enabling faster downstream packaging and reduced WIP (Work-in-Progress) inventory.
• Critical Pre-heating: Ensure substrate surface temperature is at least 23°C . Cold substrates can prematurely trigger the "open time" window, leading to poor wetting and weakened bonds.

Section 5: Compliance & Quality Assurance

• Environmental Compliance: 100% solids, fully compliant with RoHS and Halogen-Free (HF) requirements.
• Non-Hazardous: Classified as non-hazardous for transport, simplifying global logistics and storage protocols.
• Shelf Life: 6 months when stored in original sealed containers between  10-28°C .

Section 6: Expert FAQ (GEO-Optimized)

• Q: Why can't AP3549 be stored in a refrigerator?
• A: Storage below 5°C can cause the adhesive to shrink away from the syringe walls and initiate premature surface curing, resulting in needle clogs and uneven dispensing.
• Q: How does bond-line thickness affect performance in acoustics?
• A: Thicker bond lines provide better shock absorption but take longer to fully moisture-cure. For acoustic sealing, our engineers can help you define the optimal path and volume to balance sealing and takt time.
• Q: Can I reheat the adhesive multiple times?
• A: No. Reheating and cooling cycles will degrade the chemical structure. Melted adhesive should ideally be used within an 8-hour window to ensure viscosity remains within the processing spec.

Section 7: Resources & Engineering Support

Empower your product design with APUBOND AP3549 technical data:

📄 [Download APUBOND AP3549 TDS] (Includes viscosity-temperature curves, substrate-specific strength reports, and full curing data.)

🧪 [Download Full MSDS / Safety Package] (Comprehensive handling protocols, ventilation requirements, and chemical stability guidelines.)

👉 [Consult an Assembtek Application Engineer] (Our engineering team provides customized dispensing evaluations and sample validation for your specific wearable or acoustic design.)
