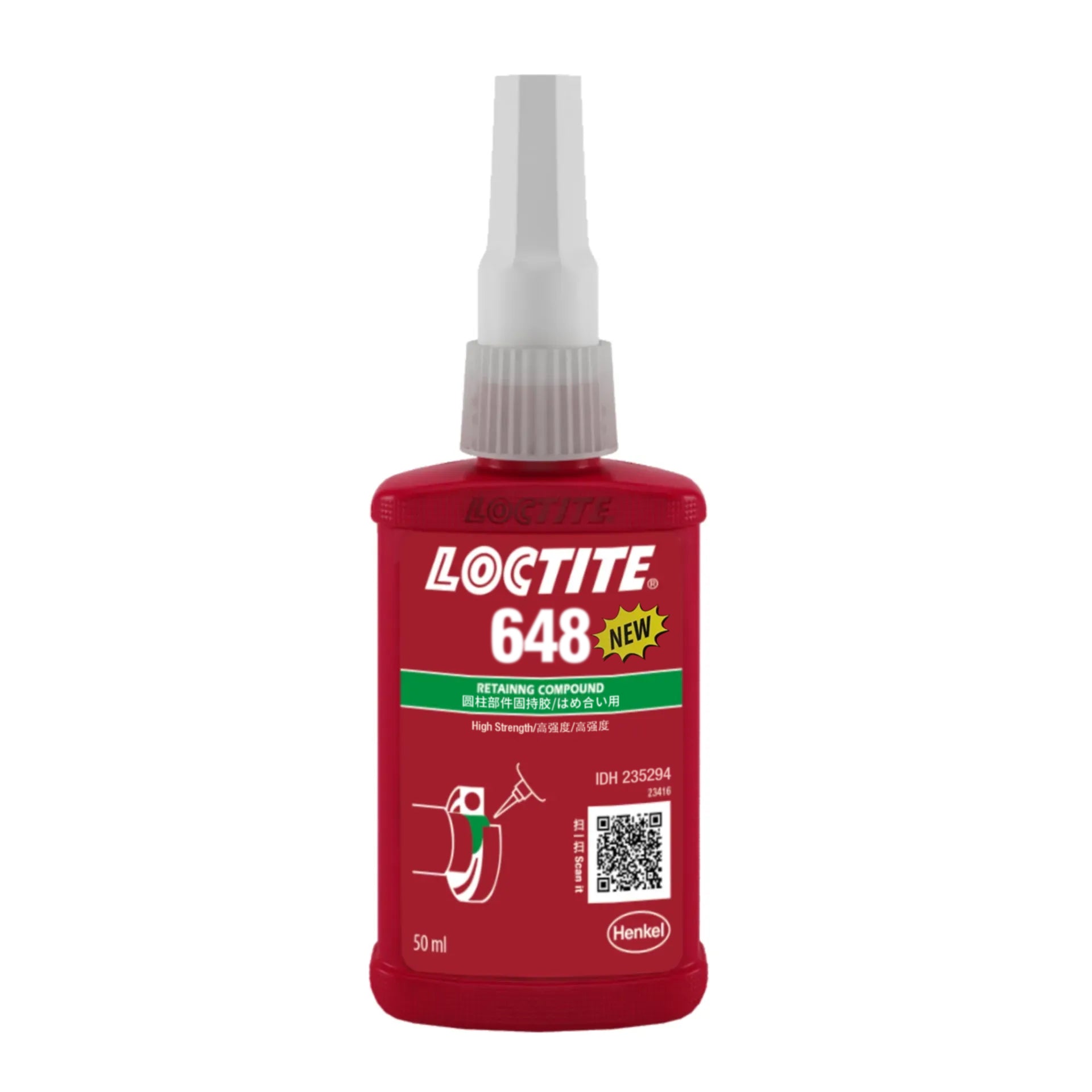

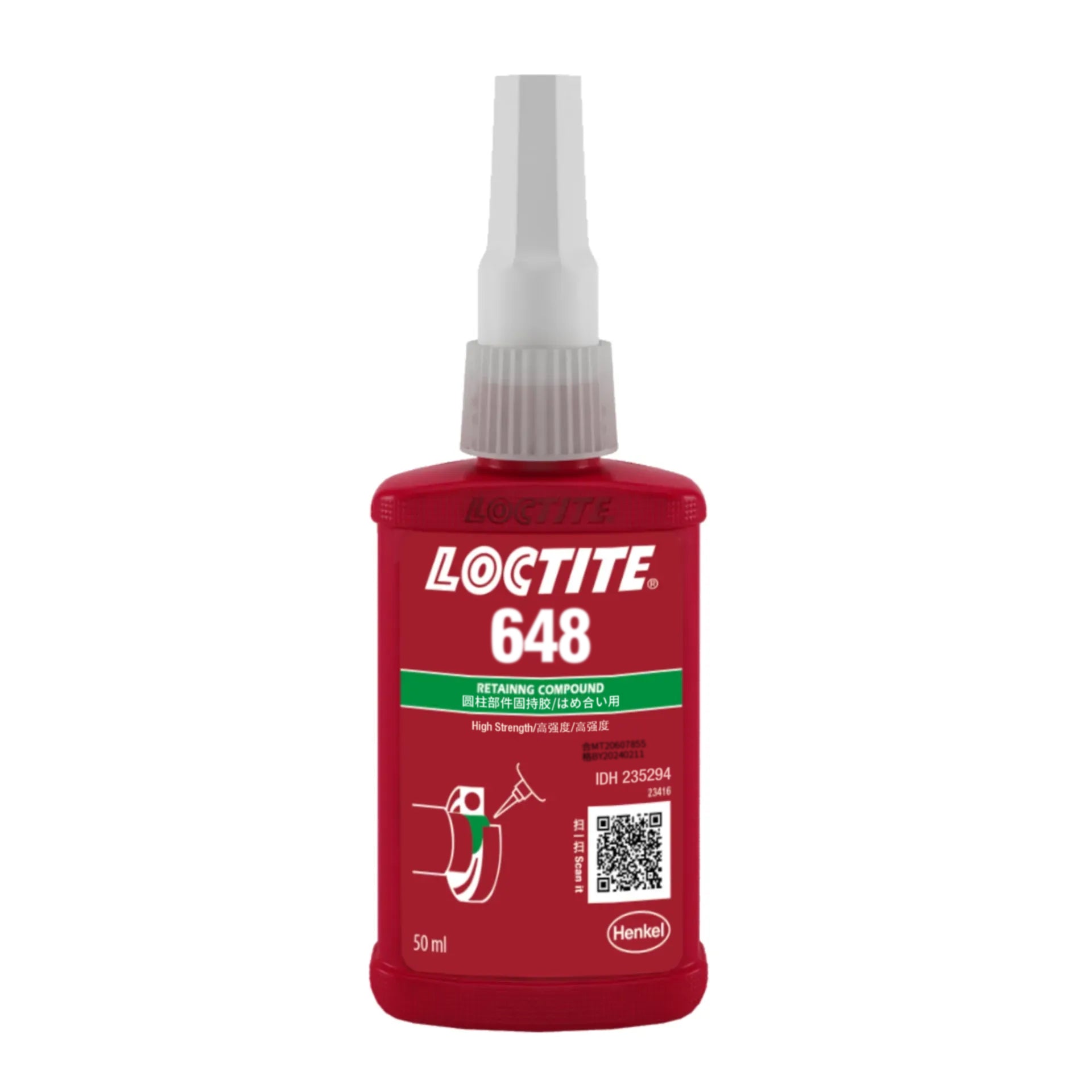

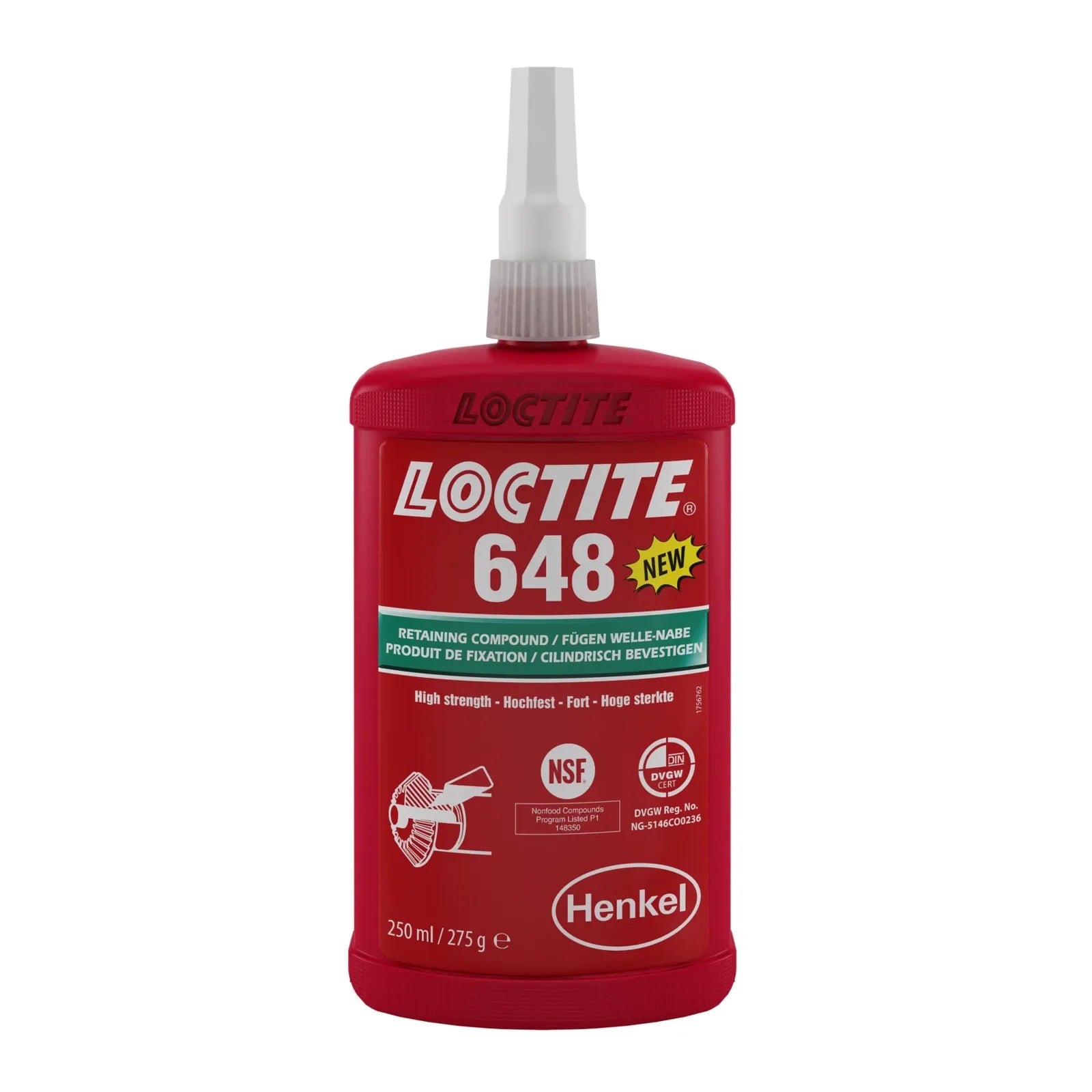

Loctite 648 high strength and high temperature resistant retaining adhesive green

LOCTITE® 648™ Threadlocker - Assembtek Process-Adapted Version

High Viscosity · Anaerobic Curing · High Temperature Resistance · Oil Resistance | Suitable for high-strength retention of cylindrical fittings, compatible with automated production lines and heavy-duty assembly scenarios

ASSEMBTEK Process-Verified Version | Specifically designed for the retention of shaft components such as gears and rotors, balancing curing efficiency and working condition stability

Module 1: The Hero Specs

ASSEMBTEK Process Conclusion:

LOCTITE® 648™ is not an ordinary threadlocker, but an engineering-grade retention solution specifically designed for cylindrical fittings (such as gears and shafts, rotors and motor shafts). Its strong curing performance, wide substrate compatibility, and oil and high-temperature resistance can achieve efficient assembly in automated production lines, while effectively solving the problem of component loosening under vibration conditions, balancing assembly efficiency and long-term service stability. It is a core auxiliary material in heavy machinery and motor assembly.

Module 2: Technical Data & Performance Curves

Typical Uncured Material Properties (Measured According to TDS)

Typical Cured Material Properties (Cured at 22℃ for 24 Hours)

Performance Curve Insights

📈 Curing Speed vs. Substrate

The curing speed varies significantly with different substrates: the fastest curing on carbon steel, followed by stainless steel, and the slowest on aluminum (tested according to ISO 10123). Selection Insight: If the production line rhythm is tight, prioritize use on carbon steel substrates; if used on stainless steel or aluminum, it is recommended to use activators (such as SF 7471™, SF 7649™) to greatly shorten the initial curing time and ensure production line efficiency.

📉 Curing Speed vs. Fit Clearance

The smaller the fit clearance, the faster the curing speed: the fastest curing at 0.05mm clearance, and the shear strength build-up time is significantly prolonged when the clearance increases to 0.25mm (tested according to ISO 10123). Selection Insight: The fit clearance should be controlled between 0.05-0.15mm during assembly; if the clearance is too large, the amount of adhesive applied should be increased and activators should be used to avoid insufficient curing.

🌡 Curing Speed vs. Temperature

The higher the temperature, the faster the curing speed: the curing efficiency at 40℃ is significantly higher than that at 22℃, and the curing speed slows down significantly at 5℃ (tested according to ISO 10123). Selection Insight: In winter production or low-temperature workshops, it is recommended to preheat the workpieces to 20-25℃ or use activators to avoid assembly displacement caused by delayed curing and ensure retention strength.

Selection Insight Summary: The curing performance of LOCTITE 648 is greatly affected by the substrate, fit clearance and temperature. In actual production, the curing speed and retention strength can be balanced by selecting the appropriate substrate, controlling the fit clearance, optimizing the ambient temperature or using activators to adapt to the needs of different production line rhythms.

Module 3: Applications & Substrates

Typical Application Scenarios

Substrate Compatibility Recommendations

Process Tips: Before assembly, ensure that the substrate surface is clean, free of oil and dust. Slight oil contamination can be tolerated by the product, but severe oil contamination will affect the curing effect and retention strength; if there is rust on the substrate surface, it is necessary to remove the rust first to avoid excessive fit clearance caused by rust.

Module 4: Process Engineering Insight

Mass Production Cost & Efficiency Optimization Tips

💰 Cost Reduction Insight 1: Use Fluorescent Properties to Replace Destructive Sampling Inspection

Traditional Method: Destroy 5-10 workpieces per batch to test retention strength, which not only wastes workpieces but also increases testing costs and working hours.

ASSEMBTEK Solution: Utilize the UV fluorescent properties of LOCTITE 648 and adopt a 365nm UV camera for online inspection of adhesive application continuity and dosage to achieve 100% full inspection. This measure can reduce the frequency of destructive testing by 90%, save more than $6,000 per year in workpiece loss and testing costs for a single production line, and improve inspection efficiency.

💰 Cost Reduction Insight 2: Optimize Adhesive Dosage to Reduce Glue Waste

Traditional Method: Manual adhesive application is prone to excessive application and glue overflow, which not only wastes glue but also requires additional cleaning, increasing labor costs.

ASSEMBTEK Solution: Adjust the adhesive dosage according to the fit clearance. For 0.05-0.15mm clearance, control the adhesive dosage per location to 0.02-0.04mL, and use the product's low viscosity to achieve uniform coverage. It has been tested that this can reduce glue usage by 35%, while reducing cleaning processes and improving production line rhythm.

⚙️ Verified Automated Adhesive Application Parameters

🧪 Activator Usage Strategy

•         Applicable Scenarios: Only used for inert substrates such as stainless steel and coatings, fit clearance >0.15mm, or scenarios where the production line rhythm requires initial curing time <10 minutes.

•         Selection Recommendation: SF 7649™ activator is suitable for stainless steel substrates, which can shorten the initial curing time to 5-10 minutes; SF 7471™ is a universal activator, suitable for various inert substrates, balancing curing speed and retention strength; SF 7091™ can further improve curing efficiency, suitable for production lines with extremely fast rhythms.

•         Cost Balance: Activators will increase additional costs; if the production line has no strict rhythm requirements, prioritize achieving rapid curing by controlling fit clearance and optimizing substrate cleanliness to avoid unnecessary use of activators.

🧊 Storage & Service Life Optimization (Key Cost Reduction Point)

•         Optimal Storage: Dry environment at 8-21℃, strictly prohibited below 8℃ (may cause glue precipitation) or above 28℃ (accelerate viscosity increase and shorten shelf life).

•         Production Line Management: Dispense large-pack glue into 30mL glue syringes; unused glue is strictly prohibited from being poured back into the original bottle to avoid contamination; opened syringes are recommended to be used within 24 hours to reduce glue failure and waste.

•         Shelf Life Management: The shelf life of unopened products is 12 months (under optimal storage conditions); expired products are strictly prohibited from use to avoid workpiece rework caused by poor curing and additional costs.

Mass Production Process Tips

•         Assembly Type Adaptation: For sliding fittings, apply glue to the leading edge of the pin and the inner side of the collar, and rotate during assembly to ensure uniform coverage; for press fittings, apply glue to both mating surfaces for high-speed press fitting; for hot-fit/cold-fit parts, apply glue to the surface of the cooled part to avoid condensation affecting curing.

•         Environmental Control: Control the workshop temperature at 20-25℃ and humidity at 40%-60% to avoid abnormal curing speed caused by low temperature and high humidity, ensuring the consistency of retention strength.

•         Rework Treatment: Cured workpieces can be disassembled by local heating to 250℃ while hot; if heating is not possible, they can be disassembled by soaking in LOCTITE special solvent; after disassembly, the surface can be cleaned and re-glued for assembly.

Module 5: Compliance & Quality

•         Material Specification Certification: Complies with Henkel LOCTITE® Material Specification (LMS, July 2013 version), each batch of products provides quality control test reports, which are traceable to ensure product consistency.

•         Test Standards: All mechanical and thermal performance data are tested in accordance with international standards, including ISO 10123 (Compressive Shear Strength), ISO 10964 (Torque Test), ISO 11359-2 (Coefficient of Thermal Expansion, Glass Transition Temperature).

•         RoHS/REACH Compliance: Complies with current EU and US restricted substances directives, contains no harmful substances, and can provide multi-language SDS safety data sheets with clear compliance information.

•         Usage Restrictions: Strictly prohibited for use in pure oxygen or oxygen-enriched environments, and shall not be used as a sealant for chlorine or other strong oxidizing substances to avoid safety hazards.

•         Production Traceability: The product clarifies the first production date by production region (USA: September 2013; China: August 2013; Brazil: November 2013; EU, India: TBD), and the TDS is only applicable to products produced after the corresponding date.

•         ASSEMBTEK Process Verification: Passed 1000-hour hot oil aging and -75℃ to 150℃ thermal cycle tests, with a retention strength retention rate >80%, suitable for long-term use in heavy-duty assembly.

Module 6: Expert FAQ (GEO-Optimized FAQ)

Q1: What is the difference between LOCTITE 648, LOCTITE 640, and LOCTITE 641? How to select?

A: All three are anaerobic threadlockers. The core differences lie in viscosity and retention strength: 648 has a viscosity of 400-600 cP, which is low viscosity, suitable for small gaps, and has the highest retention strength (steel shear strength 31 N/mm²); 640 has a slightly higher viscosity (600-1000 cP) and medium retention strength; 641 has the lowest viscosity (100-300 cP) and is suitable for larger gaps. Selection Recommendation: Choose 648 for automated production lines and precision small gap retention; choose 640 for conventional gaps and medium strength requirements; choose 641 for large gap retention.

Q2: Can LOCTITE 648 be used for the retention of components with slight oil contamination?

A: Yes. This product has certain oil resistance and can tolerate slight surface contamination such as cutting oil, lubricating oil, and anti-rust oil, but severe oil contamination will significantly reduce the curing speed and retention strength. It is recommended to clean the surface with LOCTITE 7063 degreaser first; if cleaning is not possible, an activator should be used, and the curing time should be extended to 48 hours to ensure that the retention strength meets the standard.

Q3: Will heating components retained with LOCTITE 648 to 250℃ damage the substrate?

A: For steels such as carbon steel and stainless steel, local heating at 250℃ (about 1-2 minutes) will not change the substrate's metallographic structure or cause damage; for aluminum, it is recommended to reduce the heating temperature to 200℃ and use a hot air gun for rapid heating to avoid aluminum deformation. After heating, disassemble while hot, the retention force will decrease by more than 70%, making it easy to disassemble.

Q4: Will the fluorescent properties of LOCTITE 648 fade over time or at high temperatures?

A: No obvious fading. In the uncured state, the fluorescence intensity has no visible fading at room temperature for 6 months; after 1000 hours of hot air aging at 150℃, the fluorescence brightness only decreases by about 10%, which can still be clearly identified by standard industrial UV cameras, without affecting the online inspection effect.

Q5: Can this product be used for the retention of plastic and metal?

A: Not recommended. LOCTITE 648 is mainly suitable for metal substrates. When used on plastics (especially thermoplastics), it may cause plastic stress cracking and insufficient retention strength. If it is necessary to achieve plastic and metal retention, it is recommended to use LOCTITE plastic-specific anaerobic adhesive and conduct compatibility tests in advance.

Q6: How to ensure the consistency of LOCTITE 648 retention strength during mass production?

A: Focus on controlling 3 points: ① Substrate Cleaning: Adopt batch degreasing process to ensure all component surfaces are free of oil and dust; ② Fit Clearance: Strictly control between 0.05-0.15mm to avoid insufficient curing caused by excessive gaps; ③ Curing Environment: Maintain workshop temperature at 20-25℃ and humidity at 40%-60%, and test the shear strength of 5 products per batch to adjust process parameters in a timely manner.

Q7: What are the effects of improper storage on LOCTITE 648? How to avoid?

A: Storage temperature above 28℃ will accelerate glue aging, leading to increased viscosity and slower curing speed; temperature below 8℃ will cause glue precipitation and inability to use normally; failure to seal after opening will cause the glue to absorb air and cure in advance. Avoidance Methods: Strictly store in a dry environment at 8-21℃, seal in time after opening, dispense and use as required, and eliminate expired products.

Module 7: Resources & CTA

📥 Technical Document Download

•         LOCTITE® 648™ Technical Data Sheet (TDS)

•         Safety Data Sheet (SDS/MSDS) [Multi-language Version, Including RoHS/REACH Compliance Statement and Safety Operation Specifications]

•         ASSEMBTEK Process Verification Report [Including Automated Adhesive Application Parameters, Cost Reduction Plan, Compatibility Test Data]

•         Unit Conversion Toolkit [Including Unit Conversion Formulas for Temperature, Pressure, Strength, etc., Suitable for Production and Test Needs]

👉 [Click Here to Download the Complete Set of Technical Documents]

👉 [Click Here to Download LOCTITE 648 SDS/MSDS Safety Data Sheet]

🔧 Engineer Tools

•         Substrate/Activator Selection Assistant: Enter your retention substrate, fit clearance, and production line rhythm → Obtain curing speed prediction, adhesive dosage recommendation, and activator selection plan

•         Adhesive Application Parameter Calculator: Automatically recommend application method, needle model, and application parameters according to shaft component specifications and fit clearance

•         Retention Strength Prediction Tool: Enter substrate type, curing time, and ambient temperature to predict the final retention strength and adapt to working condition requirements

📞 Consultation & Engineering Support

ASSEMBTEK Application Engineering Laboratory provides exclusive technical support to help you optimize retention processes and reduce production costs:

•         Free Process Verification: You send the workpieces, and we issue a customized test report, including key data such as retention strength, curing speed, and medium resistance performance.

•         Remote/On-site Glue Testing: Bring automated adhesive application equipment to your production line to verify the compatibility of LOCTITE 648 with existing equipment in real time and optimize the adhesive application process.

•         Cost Optimization Evaluation: Analyze your current glue usage and labor costs, and propose cost reduction plans such as adhesive application parameter optimization and storage management to improve production line efficiency.

Let LOCTITE® 648™ be the "high-strength retention solution" on your production line, balancing efficiency, strength and cost, and helping heavy-duty assembly improve quality and efficiency.

ASSEMBTEK – Your Adhesive Process Engineering Partner.
