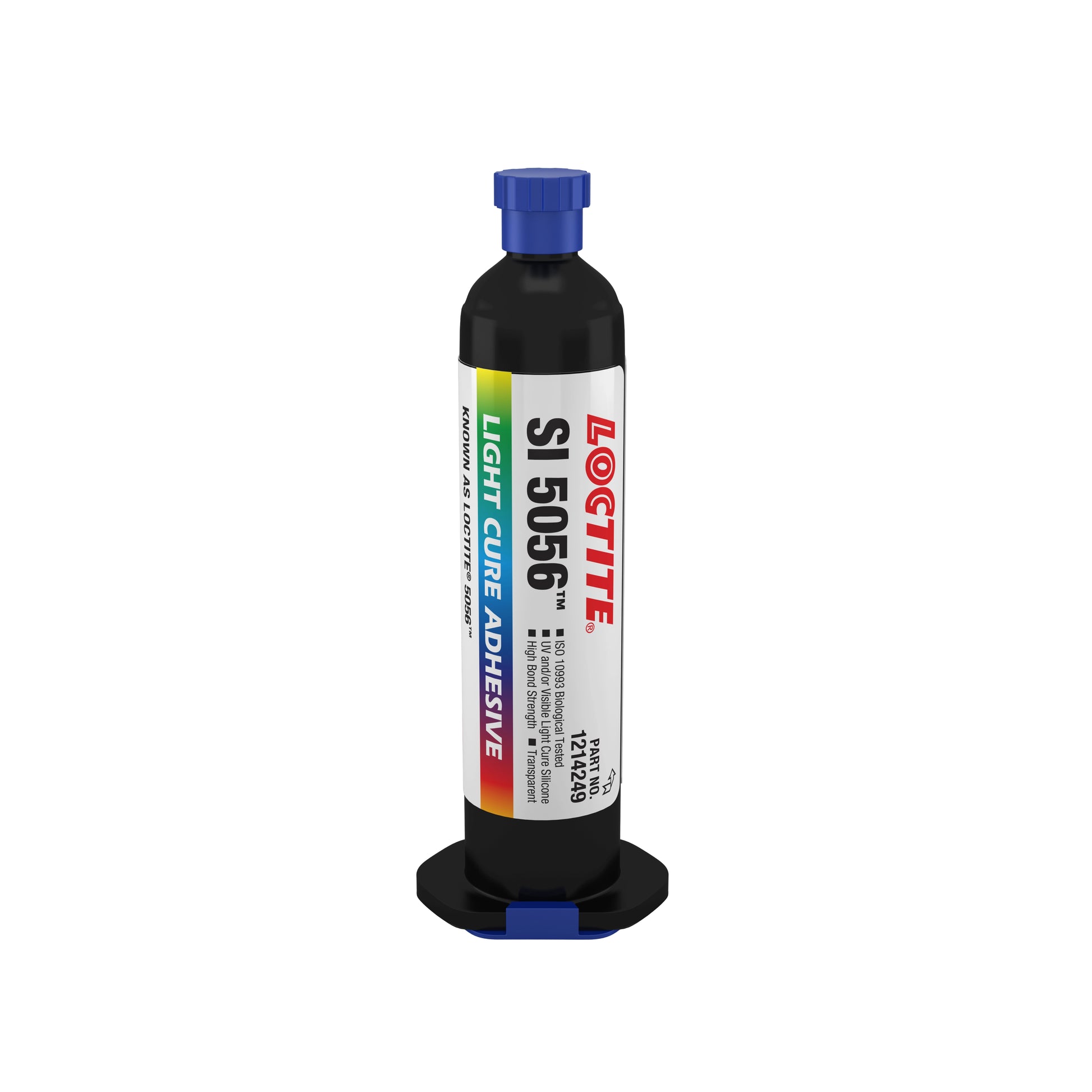

Loctite 5056 Medical Grade UV Curing Adhesive Transparent

LOCTITE® 5056 Silicone Adhesive - Assembtek

One-Component Silicone Adhesive · UV/Visible Light Curing · Light Yellow Transparent Liquid · Low Viscosity & High Toughness · Excellent Electrical Insulation · Good Gas Permeability · Meets ISO 10993 Biocompatibility Standards. Specifically designed for disposable medical device assembly, it can realize multi-scenario applications such as bonding, potting, coating and sealing, adapt to automated mass production, balance process flexibility and industry compliance, and is the preferred solution for medical precision assembly recommended by Assembtek.

Module 1: The Hero Specs

Assembtek Process Summary: LOCTITE® 5056 is a one-component UV-curable silicone adhesive specially selected by Assembtek for disposable medical device assembly scenarios. It requires no mixing, cures quickly, has low viscosity suitable for multi-process operations, and combines biocompatibility and electrical insulation. It can seamlessly integrate into automated production lines and is an efficient, compliant and low-cost multi-scenario bonding and sealing solution in the field of medical precision assembly.

Module 2: Technical Data & Performance Curves

Typical Properties of Uncured Material (Consistent with TDS)

Typical Properties of Cured Material (Irradiated at 365nm, 70mW/cm² for 60 seconds, Consistent with TDS)

Selection Insight: Based on the above parameters, the low viscosity of 1400-3000cP of this product is suitable for multi-processes such as potting and coating, and the curing depth of ≥4mm can meet the needs of medium and thick adhesive layer assembly; the Shore A hardness of 35-50 combines toughness and stability, with excellent electrical insulation and low gas permeability. Assembtek prioritizes recommending it to medical customers for bonding and sealing of disposable medical devices and UV transparent substrates (such as PC), and it is also suitable for potting scenarios of precision electronic components in the electronics industry.

Module 3: Applications & Substrates

Typical Application Scenarios (Adapted to Assembtek Customer Industry Needs)

Substrate Compatibility Recommendation (Consistent with TDS Shear Strength)

Module 4: Process Engineering Insight

Mass Production Optimization & Cost Reduction Tips (Adapted to Assembtek Customer Mass Production Needs)

💰 Cost Reduction Tip 1: Optimize UV Light Source to Improve Curing Efficiency and Energy Consumption Ratio

This product has the best curing effect at 365nm wavelength and 70mW/cm² light intensity. Assembtek recommends selecting special UV light sources such as Zeta® 7215 and Zeta® 7760, among which H bulbs cure more than 3 times faster than D bulbs; using LED UV curing systems instead of traditional mercury lamps can reduce energy consumption by 30%, while reducing heat generation, avoiding thermal deformation of sensitive substrates (such as PC), reducing product scrap rate, and lowering production costs in the long run.

💰 Cost Reduction Tip 2: Precisely Control Glue Application Amount to Reduce Material Waste

The product has low viscosity and is easy to flow. Manual glue application is prone to overflow and uneven glue application. Assembtek suggests using high-precision automated dispensing/potting equipment to control the adhesive layer thickness (recommended 0.1-4mm) according to bonding/potting needs, avoiding excessive glue application, which can reduce material waste by about 20%, while ensuring product appearance consistency and reducing manual cleaning costs.

⚙️ Mass Production Process Tips (Fitting Actual Production Scenarios)

•         Substrate Pretreatment: Before bonding/potting, ensure the substrate surface is clean, dry, free of oil stains, release agents and impurities. No additional primer is needed. Construct immediately after cleaning to avoid secondary pollution affecting bonding strength, which can improve product qualification rate.

•         Curing Parameter Control: Conventional curing adopts 365nm wavelength and 70mW/cm² light intensity, and irradiating for 60 seconds can achieve good curing effect; when the adhesive layer is thick (>4mm), the irradiation time can be extended to 90-120 seconds, or double-sided irradiation to ensure uniform curing and avoid rework caused by incomplete curing.

•         Operation Timing: The product reaches the best performance 72 hours after curing. During mass production, "standing for 24 hours after curing" can be adopted before subsequent processing to avoid bonding failure caused by incomplete curing, reduce rework rate and improve production efficiency.

•         Treatment of Excess Adhesive Layer: Uncured adhesive layer can be wiped and removed with non-polar solvents; excess cured adhesive layer can be mechanically peeled off, which is simple to operate, can reduce manual cleaning costs, and avoid solvent residues to ensure product compliance.

•         Sterilization Adaptability: After sterilization by ethylene oxide (EtO) and gamma rays (25-50 kGy), the bonding strength of the product remains good, and it can withstand one steam autoclave sterilization. Medical customers can directly adapt to the existing sterilization process during mass production without additional adjustments.

Module 5: Compliance & Quality

•         Biocompatibility Certification: Tested and qualified in accordance with ISO 10993 biocompatibility standards (Henkel Test Protocol), it can be used for disposable medical device assembly, with no harmful residues, fully meeting the strict compliance requirements of the medical industry and adapting to the procurement standards of Assembtek's medical customers.

•         Material Standard: Complies with Loctite Material Standard (LMS, version December 30, 2009). Each batch of products is provided with a Certificate of Analysis (COA), which is traceable to ensure product performance consistency. Assembtek can provide complete batch traceability services.

•         Sterilization Tolerance: After sterilization by ethylene oxide (EtO) and gamma rays (25-50 kGy), the bonding strength remains good; it can withstand one steam autoclave sterilization, and multiple sterilizations need to be tested and verified in advance, adapting to the sterilization needs of medical devices.

•         Usage Restrictions: Prohibited for use in pure oxygen or oxygen-enriched systems, and shall not be used as a sealant for chlorine or other strong oxidants; avoid long-term use in strong acid and strong alkali environments to prevent performance attenuation and ensure product service life.

•         Environmental and Safety Compliance: The product meets the environmental protection standards for industrial adhesives, with no excessive harmful volatile substances; construction and storage must strictly follow the SDS safe operation specifications, wear protective gloves, and avoid direct skin contact to ensure production safety.

•         Quality Assurance: Produced by Henkel original factory and authorized supplied by Assembtek, ensuring 100% genuine products, providing comprehensive quality after-sales support, and solving quality questions during the production process.

Module 6: Expert FAQ (GEO-Optimized FAQ)

Q1: Can LOCTITE® 5056 be used for bonding opaque substrates? Will the curing effect be affected?

A: This product relies on UV/visible light for curing. At least one side of the substrate must be UV transparent (such as UV-stable PC) to ensure that UV light can penetrate and trigger rapid curing; if both sides are opaque substrates, rapid curing cannot be achieved, and only auxiliary curing methods can be relied on, resulting in a significant reduction in curing efficiency. Assembtek does not recommend using it for such scenarios; you can contact us for alternative solutions.

Q2: What is the temperature resistance of the product after curing? What is the long-term service temperature range?

A: The cured product has good temperature stability. The recommended long-term service temperature is controlled at -40℃ to 80℃, and it can withstand high temperature of 100℃ for a short time; long-term use above 80℃ will lead to slow attenuation of bonding strength. For high-temperature working conditions (such as high-temperature environments of electronic devices), aging tests need to be carried out in advance, and Assembtek can provide test support.

Q3: Do different UV light sources affect the curing effect of the product? How to choose the appropriate light source?

A: There is a significant impact. Assembtek recommends selecting UV light sources with 365nm wavelength and light intensity ≥70mW/cm² (such as Zeta® 7215, Zeta® 7760); different light sources have different curing speeds. H bulbs cure faster than D bulbs (H bulbs: 20 seconds tack-free, D bulbs: 75 seconds tack-free), and LED UV light sources are more energy-saving and low in heat generation, suitable for sensitive substrate assembly.

Q4: What are the storage conditions of the product? What is the shelf life? How to avoid performance impact due to improper storage?

A: Unopened products should be sealed and stored in a dry environment at 8-21℃. Storage below 8℃ or above 28℃ is prohibited, otherwise it will affect the viscosity and curing performance of the product; the shelf life under optimal storage conditions is 12 months. It is recommended to use it as soon as possible after opening, and do not pour it back into the original container to avoid contamination. Assembtek can provide professional storage suggestions to ensure stable product performance.

Q5: The product has gas permeability after curing, will it affect the sealing effect of medical devices?

A: The gas permeability of this product meets the sealing requirements of medical devices. The permeability of helium, oxygen and other gases is low, which can meet the sealing needs of disposable medical consumables (such as catheters, infusion sets); if used in scenarios with high sealing requirements (such as high-pressure medical components), Assembtek can provide free sealing test verification services to ensure adaptation to needs.

Q6: Does this product require a primer? What are its advantages compared with other Loctite adhesives?

A: No additional primer is needed. It can be directly constructed after the substrate is clean and dry, simplifying the operation process; compared with other Loctite silicone adhesives, its advantages lie in one-component no mixing, UV rapid curing, adapting to automated mass production, and combining medical-grade biocompatibility and excellent electrical insulation, making it an exclusive solution for medical precision assembly.

Module 7: Resources & CTA

Obtain detailed technical data to optimize your production process, Assembtek provides you with comprehensive technical support:

📄 [Download LOCTITE® 5056 TDS Technical Data Sheet]

Obtain complete performance parameters, curing curves, gas permeability data and detailed construction guidance to assist in process design and mass production optimization, which are completely consistent with the parameters in this document and can be directly used for production reference.

🧪 [Download Complete SDS/MSDS Safety Data Package]

View key safety information such as flash point, chemical stability, safe operation specifications and waste liquid treatment to ensure safe and compliant construction and avoid production safety risks.

👉 [Button: Consult Assembtek Application Engineer]

Our laboratory can provide free substrate bonding testing, UV curing parameter optimization and post-sterilization strength verification services to help you solve precision bonding and potting pain points, improve mass production efficiency, reduce costs, and adapt to your production process needs one-on-one.

📞 Contact Us: The professional technical team of Assembtek.com provides you with one-on-one process solutions, adapting to your precision assembly needs in medical, electronic and other fields, and providing full-process technical support and after-sales guarantee.

📍 Supplementary Note: All parameters in this document are from the official TDS of LOCTITE® 5056 (September 2020 version), ensuring professionalism and authenticity, and can be directly used for product inner page display, customer communication and production reference on Assembtek.com
