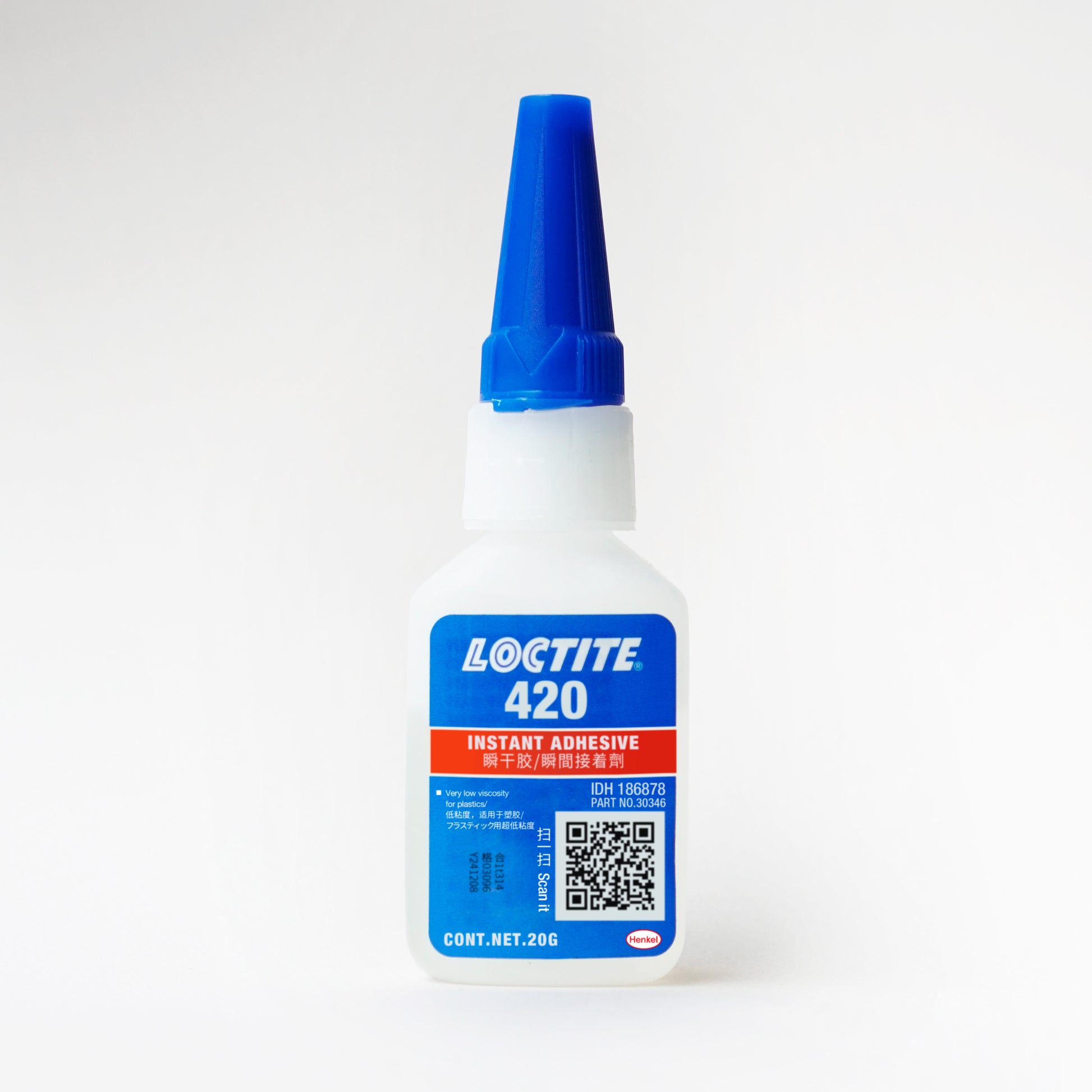

Loctite 420 Universal Instant Adhesive Transparent

LOCTITE® 420 Instant Adhesive

Universal · Low Viscosity · Cyanoacrylate · Instant Adhesive

ASSEMBTEK Process-Adapted Version | Suitable for Rapid Bonding of Plastics, Rubbers, Metals and Other Substrates

Module 1: The Hero Specs

ASSEMBTEK Process Conclusion:

As a universal instant adhesive, LOCTITE® 420 takes "rapid curing, multi-substrate compatibility, and low-viscosity penetration" as its core advantages. It can not only meet conventional bonding needs but also adapt to precision component and high-speed mass production scenarios, balancing bonding efficiency and bonding strength. It is a "high-efficiency, convenient, and reliable" universal bonding solution in industrial assembly.

Module 2: Technical Data & Performance Curves

Typical Properties of Uncured Material (Measured According to TDS)

Typical Properties of Cured Material (Cured at 22℃ for 24 Hours)

Typical Bond Strength Values (Cured at 22℃ for 24 Hours)

Performance Curve Insights

📈 Curing Speed vs. Substrate

At 22℃ and 50% relative humidity, the fixture time varies significantly for different substrates: rubber (nitrile, neoprene) is the fastest (<5 seconds), followed by aluminum (degreased) (5-15 seconds), and zinc dichromate is the slowest (30-90 seconds). Selection Insight: For high-speed production lines, prioritize use on rubber and aluminum substrates; if bonding zinc dichromate substrates, it is recommended to reserve sufficient curing time or use an activator to ensure bonding strength.

📉 Curing Speed vs. Gap

Bonding gap directly affects curing speed. Thin gaps (≤0.05mm) cure the fastest, and the larger the gap, the slower the curing speed. Selection Insight: Control the bonding gap during assembly, try to keep it within 0.05mm. If the gap is too large, it can be improved by applying a small amount of adhesive and adjusting assembly accuracy, and an activator can be used if necessary to accelerate curing.

🌡 Curing Speed vs. Humidity

The higher the relative humidity of the environment, the faster the curing speed. The curing efficiency at 60% RH is significantly higher than that at 20% RH. Selection Insight: Controlling the workshop humidity at 40%-60% can achieve the best curing effect. In dry environments, the ambient humidity can be appropriately increased to improve bonding efficiency.

Summary of Selection Insights: The low viscosity of LOCTITE 420 makes it suitable for bonding precision narrow seams, but its curing speed is greatly affected by substrate, gap, and humidity. In actual production, the curing time can be adjusted according to the substrate type, the bonding gap can be controlled, and the ambient humidity can be optimized. Efficient bonding can be achieved without additional heating, which is suitable for high-speed mass production needs.

Module 3: Applications & Substrates

Typical Application Scenarios

Substrate Compatibility Recommendations

Process Tip: Ensure the substrate surface is clean, oil-free, and dust-free before bonding, otherwise the bonding strength will be significantly affected; for inert substrates or large gap bonding, LOCTITE activator can be used to accelerate curing, but note that the activator may reduce the final bonding strength, so it is recommended to do a compatibility test in advance.

Module 4: Process Engineering Insight

Mass Production Cost & Efficiency Optimization Tips

💰 Cost Reduction Insight 1: Optimize Adhesive Application Amount to Reduce Waste

Traditional Method: Manual adhesive application is prone to glue overflow and excessive application, which not only wastes adhesive but also requires additional cleaning, increasing labor costs.

ASSEMBTEK Solution: Use precision dispensing equipment (such as 18G needle) to control the adhesive application amount to 0.01-0.03mL per piece. Utilize the low viscosity of LOCTITE 420 to allow the adhesive to naturally penetrate the bonding gap without excessive application. Actual measurement shows that it can reduce adhesive usage by 30%, save more than $5,000 in adhesive costs per production line per year, and reduce cleaning processes to improve production line efficiency.

⚙️ Verified Automated Dispensing Parameters

🧪 Activator Usage Strategy

•         Applicable Scenarios: Only used for inert substrates such as zinc dichromate, bonding gaps >0.1mm, or scenarios where the production line rhythm requires extremely fast (initial curing within 5 seconds).

•         Selection Recommendation: Prioritize LOCTITE 7649 activator, suitable for inert metal substrates, which can shorten the curing time of zinc dichromate to 10-20 seconds; LOCTITE 7471 activator can be used for general scenarios, balancing curing speed and bonding strength.

•         Cost Balance: Activators will increase additional costs. If the production line has no strict rhythm requirements, prioritize achieving rapid curing by adjusting substrate cleanliness and controlling gaps to avoid unnecessary use of activators.

🧊 Storage & Shelf Life Optimization (Key to Cost Reduction)

•         Optimal Storage: Store in a dry environment at 2–8℃, strictly prohibit storage below 2℃ (may cause adhesive precipitation) or above 8℃ (accelerate adhesive aging and reduce viscosity stability).

•         Production Line Management: Subpackage large-volume adhesive into 10mL and 30mL small-sized dispensing bottles. Do not pour unused adhesive back into the original bottle to avoid contamination. It is recommended to use the opened small-sized bottle within 48 hours to reduce adhesive failure and waste.

•         Shelf Life Management: Strictly follow the product shelf life, and prohibit the use of expired adhesive to avoid product rework and additional costs due to insufficient bonding strength.

Mass Production Usage Tips

•         Substrate Treatment: During mass production, LOCTITE 7063 degreaser can be used for batch cleaning to improve substrate surface activity, ensure consistent bonding strength, and reduce rework rate.

•         Curing Environment: Control the workshop humidity at 40%-60% and temperature at 20-25℃ to achieve the best curing effect, avoiding uneven curing and insufficient strength caused by environmental factors.

•         Overflow Treatment: Excess adhesive can be quickly cleaned with LOCTITE special cleaning agent, acetone or nitromethane. It is recommended to clean before the adhesive is fully cured (within 10 minutes) to improve efficiency and reduce substrate damage.

Module 5: Compliance & Quality

•         Military Specification Certification: Meets Military Specification Mil-A-46050C lot requirements, suitable for military, aerospace and other fields that meet this specification (regional certification, please consult the technical center for details).

•         Commercial Standard Certification: Complies with Commercial Item Description A-A-3097 standard, can be used in various industrial and commercial scenarios with strong compatibility.

•         Test Standards: All mechanical, thermal and electrical performance data are measured in accordance with international standards such as ISO 11359-2 (coefficient of thermal expansion), ISO 8302 (thermal conductivity), IEC 60093 (resistivity), and ISO 6922 (tensile strength).

•         LMS Lot Traceability: Each batch of products complies with Henkel LOCTITE® Material Specification (LMS, version of August 29, 2003), and batch-specific quality control test reports can be provided to ensure product consistency.

•         RoHS / REACH Compliance: Complies with current EU and US hazardous substance restriction directives, contains no hazardous substances, and multi-language SDS safety data sheets can be provided to clarify compliance information.

•         Environmental Safety: Strictly prohibited for use in pure oxygen or oxygen-enriched environments, and shall not be used as a sealant for chlorine or other strong oxidizing substances. Safety operation specifications in SDS must be followed during use.

Module 6: Expert FAQ (GEO-Optimized FAQ)

Q1: What is the difference between LOCTITE 420 and other instant adhesives (such as 401, 406)? How to choose?

A: All three are cyanoacrylate instant adhesives. The core difference lies in viscosity and applicable scenarios: 420 has the lowest viscosity (1-5cP), strong fluidity, suitable for bonding small gaps and precision components; 401 has medium viscosity (10-30cP), more versatile, suitable for conventional bonding; 406 has higher viscosity (100-1000cP), suitable for bonding larger gaps. Selection Recommendation: Choose 420 for precision narrow seams and multi-substrate high-speed mass production; choose 401 for conventional general scenarios; choose 406 for large gap bonding.

Q2: Can LOCTITE 420 be used to bond metal parts pre-coated with anti-rust oil?

A: It is not recommended to use it directly. Light mineral oils (anti-rust oil, cutting oil) will seriously hinder adhesive curing, leading to a significant decrease in bonding strength. It is recommended to first clean the metal surface with LOCTITE 7063 degreaser to remove oil before bonding; if cleaning is not possible, an activator should be used, and the curing time should be extended to 48 hours to ensure the bonding strength meets the standard.

Q3: Can cured LOCTITE 420 withstand high temperature environments? What is the maximum temperature resistance?

A: The softening point of the cured product is 165℃, and the recommended normal service temperature is not more than 80℃; it can withstand high temperature of 100℃ for a short time, but long-term exposure to high temperature will lead to a decrease in bonding strength. If it needs to be used in high temperature scenarios (above 80℃), it is recommended to choose LOCTITE high-temperature instant adhesive or conduct a high-temperature aging test in advance.

Q4: Will using LOCTITE 420 to bond plastic parts cause plastic cracking?

A: Most commonly used plastics (ABS, PVC, polycarbonate, phenolic resin) will not crack, but some brittle plastics (such as polystyrene) may crack due to the slight corrosiveness of the adhesive. It is recommended to do a small-area test on the hidden part of the plastic part before use to confirm no cracking before mass use; if it is a brittle plastic, LOCTITE plastic-specific activator can be used to reduce the cracking risk.

Q5: How to quickly disassemble parts bonded with LOCTITE 420?

A: Two methods can be adopted: 1. Heating Disassembly: Heat the bonded part to 150-180℃, the adhesive will soften, and then the parts can be gently separated. Care should be taken to avoid substrate damage during heating; 2. Solvent Disassembly: Use LOCTITE special debonding agent, or acetone, nitromethane, soak the bonded part for 10-20 minutes, and then disassemble after the adhesive dissolves. After disassembly, the residual solvent on the substrate surface should be cleaned.

Q6: How to ensure the bonding consistency of LOCTITE 420 in mass production?

A: Focus on controlling 3 points: 1. Substrate Cleaning: Adopt batch degreasing process to ensure all substrate surfaces are oil-free and dust-free; 2. Adhesive Application Control: Use automated dispensing equipment to fix the adhesive application amount and position, avoiding manual operation errors; 3. Environmental Control: Maintain the workshop temperature at 20-25℃ and humidity at 40%-60% to ensure consistent curing conditions, and test the bonding strength of 5-10 products per batch to adjust process parameters in a timely manner.

Q7: What is the shelf life of LOCTITE 420? What are the effects of improper storage?

A: Under the storage condition of 2-8℃ dry environment, the shelf life of unopened products is 12 months; after opening, it is recommended to use the small-sized dispensing bottle within 48 hours. Storage temperature higher than 8℃ will accelerate adhesive aging, leading to decreased viscosity and slower curing speed; temperature lower than 2℃ will cause adhesive precipitation and inability to use normally; failure to seal after opening will cause the adhesive to absorb moisture and cure, leading to direct failure.

Module 7: Resources & CTA

📥 Technical Document Download

•         LOCTITE® 420 Technical Data Sheet (TDS) (PDF, latest version December 2020)

•         Safety Data Sheet (SDS) (multi-language version, including RoHS/REACH compliance statement and safety operation specifications)

•         ASSEMBTEK Process Adaptation Report (including automated dispensing parameters, cost reduction plans, and compatibility test data)

👉 [Click Here to Download Complete Technical Documents]

👉 [Click Here to Download LOCTITE 420 SDS Safety Data Sheet]

🔧 Engineer Tools

•         Substrate/Activator Selection Assistant: Enter your bonding substrate, gap, and production line rhythm → Obtain curing speed prediction, adhesive application amount recommendation and activator selection plan

•         Dispensing Parameter Calculator: Automatically recommend dispensing method, needle model and dispensing parameters according to the bonded component specifications and target strength

•         Unit Conversion Tool: Quickly realize unit conversion of temperature, pressure, strength, etc. (such as ℃ and ℉, N/mm² and psi), suitable for production test needs

📞 Consultation & Engineering Support

ASSEMBTEK Application Engineering Laboratory provides exclusive technical support to help you optimize bonding processes and reduce production costs:

•         Free Process Verification: You send the bonded workpieces, and we issue a customized test report, including key data such as bonding strength, curing speed, and medium resistance performance.

•         Remote/On-site Adhesive Testing: Bring automated dispensing equipment to your production line to verify the compatibility of LOCTITE 420 with existing equipment in real time and optimize dispensing processes.

•         Cost Optimization Evaluation: Analyze your current adhesive usage and labor costs, and propose cost reduction plans such as adhesive application parameter optimization and storage management to improve production line efficiency.

Let LOCTITE® 420 become the "high-efficiency bonding tool" on your production line, balancing speed, strength and cost, and helping multi-substrate precision assembly improve quality and efficiency.

ASSEMBTEK – Your Adhesive Process Engineering Partner.
