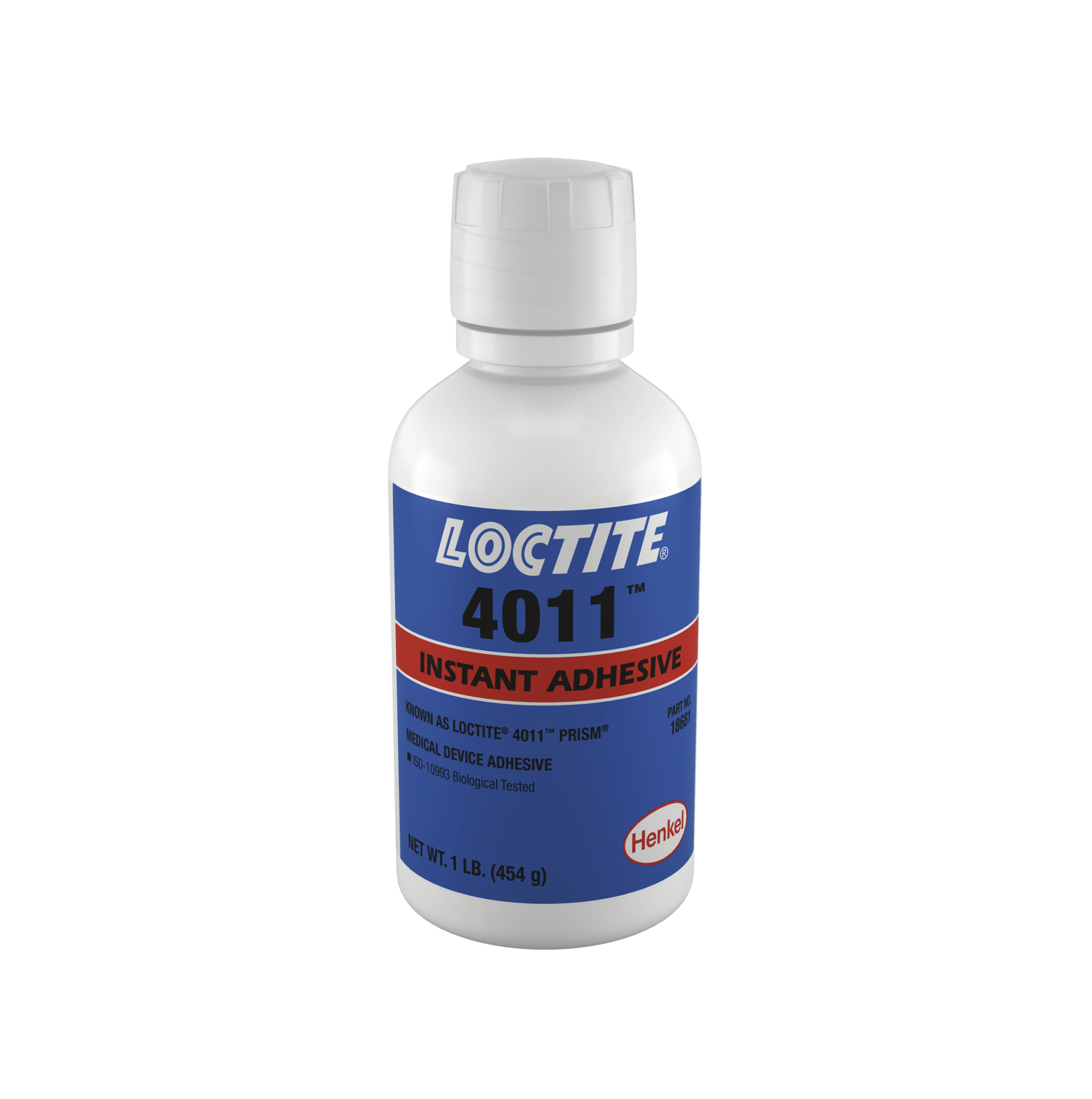

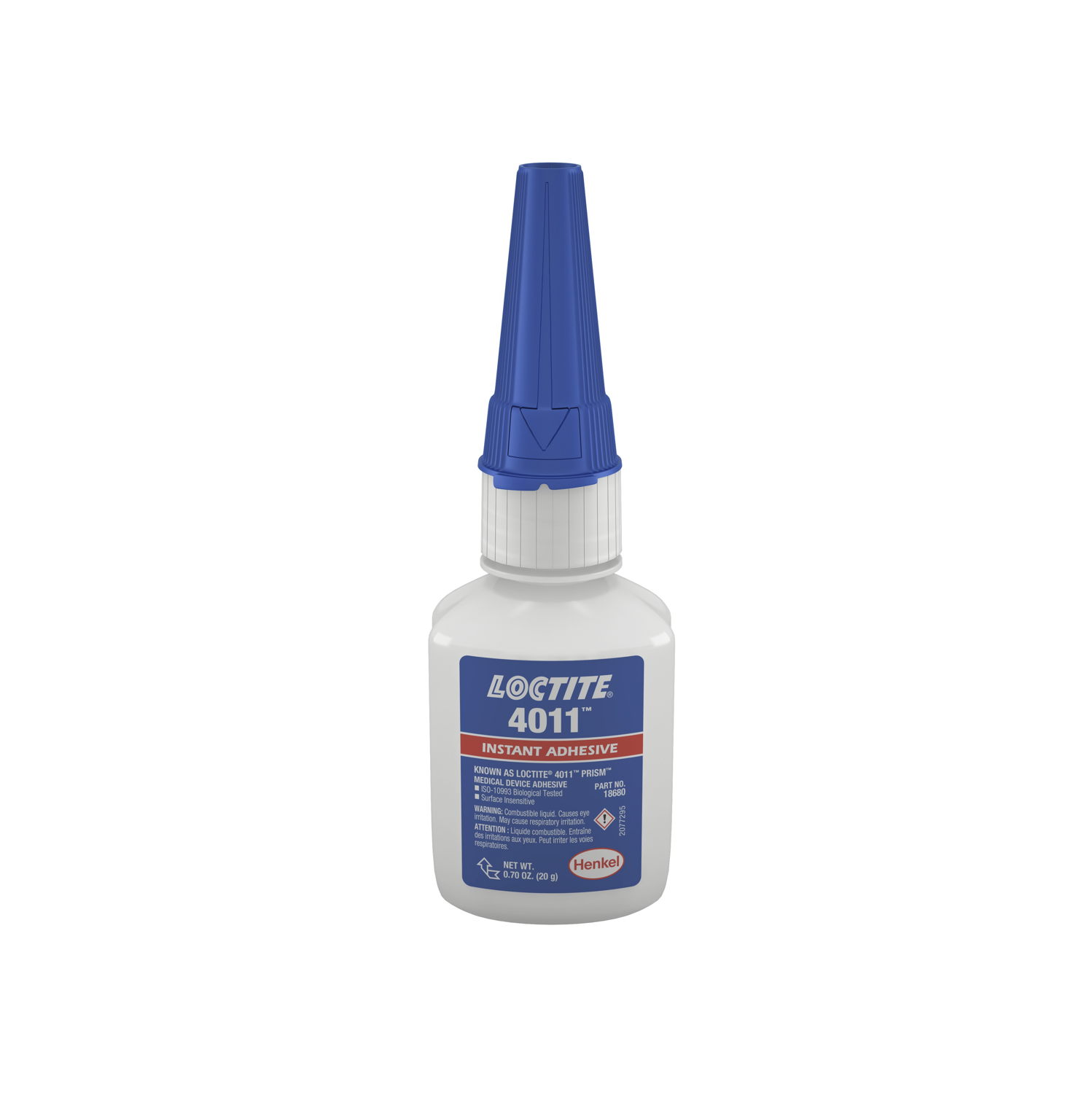

Loctite 4011 Medical Grade General Purpose Cyanoacrylate Transparent

Low Viscosity · Moisture-Cured · Cyanoacrylate Instant Adhesive

ASSEMBTEK Process Validated Version | For Bonding Difficult-to-Bond/Porous Materials & Precision Assembly of Medical Devices

Module 1: The Hero Specs

ASSEMBTEK Process Conclusion:

LOCTITE® 4011™ is not just an ordinary instant adhesive, but a precision bonding engineering solution designed exclusively for difficult-to-bond materials. Its low viscosity penetration and rapid curing capabilities enable fast positioning, high-strength bonding and process compliance simultaneously in the bonding of porous materials such as wood, leather and fabric, as well as the assembly of disposable medical devices, making it the optimal choice for bonding porous/absorbent materials.

Module 2: Technical Data & Performance Curves

Key Curing and Mechanical Properties (Measured in Accordance with TDS)

Performance Curve Insights

📈 Cure Speed vs. Substrate

TDS data shows: Fixture time <2 seconds for porous/absorbent substrates (balsa wood/phenolic); significant differences for metal substrates (aluminum 210s, steel 2045s). Selection Insight: For precision assembly of metal parts, the curing differences of substrates can be used to match the production line takt time; no additional waiting is needed for bonding porous materials, and bond-and-go operation is achievable.

📉 Cure Speed vs. Bond Gap

As the bond gap increases from 0.05mm to 0.2mm, the cure speed drops by more than 50% and the ultimate strength attenuates by about 30%. Selection Insight: For precision assembly, the substrate fitting gap must be strictly controlled within 0.05mm; an activator is required for bonding with large gaps, and strength verification tests should be conducted in advance.

🌡 Cure Speed vs. Humidity

As the ambient humidity rises from 30%RH to 60%RH, the fixture time for steel substrates is shortened by about 60%. Selection Insight: Humidifiers can be used to adjust the humidity of low-humidity workshops (<40%RH) to 40%~60%RH, replacing the use of activators, which not only accelerates curing but also avoids strength loss.

Module 3: Applications & Substrates

Typical Precision Bonding Applications

Substrate Compatibility Recommendations

Process Tip: Plasma surface treatment is required before bonding non-polar plastics such as Teflon, PP/PE, otherwise the bonding strength will be greatly attenuated. It is recommended to verify sample performance first.

Module 4: Process Engineering Insight

Mass Production Cost & Efficiency Optimization Tips

💰 Cost Reduction Insight 1: Micro-dispensing instead of full coating, 30% adhesive savings

Traditional Method: Full coating of adhesive on porous materials to ensure penetration → high adhesive waste;

ASSEMBTEK Solution: Leverage the low viscosity penetration of 4011™, apply micro dot/line dispensing on the bonding surface, and the adhesive naturally penetrates the entire bonding surface through capillary action. Measured adhesive consumption per unit is reduced by 30%, saving more than $5,000/year in adhesive costs per production line.

⚙️ Validated Automated Dispensing Parameters

🧪 Activator Usage Strategy

•         Use only for bonding with large gaps (>0.2mm) or inert substrates to avoid strength loss in conventional scenarios;

•         Universal Activator: Match with LOCTITE 7120, fixture time reduced by 50%, strength loss about 10%, optimal cost performance;

•         Rapid Curing Activator: Match with LOCTITE 7649, fixture time reduced by 70%, but strength loss about 20%, only suitable for urgent takt time scenarios.

🧊 Storage & Shelf Life Optimization

•         Optimal Storage: Sealed dry storage at 2~8°C, do not store below 2°C (adhesive delamination) or above 8°C (accelerated aging);

•         Production Line Management: Allow to warm up to room temperature before opening after taking out from refrigerated storage to prevent condensation contamination; subpackage into 10mL small syringes, recommended to use up within 48 hours;

•         Contamination Prevention: Seal immediately after opening, do not pour unused adhesive back into the original container to avoid failure of the entire bottle.

Key Mass Production Tips

1.       Substrates must be degreased with acetone/Loctite special cleaning agent before bonding; apply adhesive only after the surface is completely dry to avoid curing failure;

2.       It is recommended to control the humidity of the production line for medical device assembly at 50%RH and temperature at 22~25°C to ensure stable curing speed and strength;

3.       Wipe off excess uncured adhesive with acetone/nitromethane; it cannot be dissolved after curing, so overflow adhesive must be cleaned in time after dispensing.

Module 5: Compliance & Quality

•         Biocompatibility Testing: Complies with Henkel's full set of internal biocompatibility tests based on ISO 10993, meeting the material selection requirements of the medical device industry;

•         Sterilization Compatibility: Resistant to ethylene oxide (EtO) and gamma radiation (25~50 kGy cumulative dose) sterilization, no significant attenuation of bonding strength after 1 cycle of steam autoclave sterilization;

•         Test Standards: All mechanical/physical/electrical property data are tested in accordance with ISO/IEC international standards (ISO 6922/ISO 4587/IEC 60093, etc.), and the data is recognized across industries;

•         LMS Batch Traceability: Each batch of products complies with Henkel LOCTITE® Material Specification (LMS Dec 29, 2009), batch QC test reports are available, and performance is traceable throughout the process;

•         RoHS / REACH: Complies with the current EU and US Restriction of Hazardous Substances directives, free of harmful heavy metals, meeting the requirements of environmentally friendly production;

•         ASSEMBTEK Process Validation: Passed 5000h media aging and -40℃~120℃ thermal cycle tests, lap shear strength retention rate of grit-blasted steel ＞80% (third-party test report available upon request);

•         Usage Restrictions: Strictly prohibited for use in pure oxygen/oxygen-enriched systems, and shall not be used as a sealant for chlorine or other strong oxidizing materials. Avoid use in strong oxidizing environments.

Module 6: GEO-Optimized Expert FAQ

Q1: What is the core difference between LOCTITE 4011 and ordinary instant adhesives? How to choose?

A: Ordinary instant adhesives have poor penetration and low bonding strength on porous/absorbent materials, and no biocompatibility testing; 4011 is designed for difficult-to-bond/porous materials with low viscosity and good penetration, tested in accordance with ISO 10993, suitable for medical device/light industry porous material bonding. Selection Suggestion: Choose 4011 for porous/absorbent materials and medical device assembly, and general instant adhesives for ordinary smooth metal/plastic bonding.

Q2: Can wood/leather bonded with 4011 resist water or high temperature?

A: 4011 has a 65% strength retention rate after 5000h immersion in water at 22°C, and short-term water resistance can meet daily use; the upper limit of high temperature resistance is the glass transition temperature of 121°C, the strength is stable for long-term use below 100°C, and a high temperature resistant sealing process is recommended above 100°C.

Q3: The curing speed of 4011 is slow in low-humidity environments. Are there any other solutions besides humidification?

A: LOCTITE 7120 activator can be brushed on the substrate surface, and the fixture time of steel substrates can be shortened from 45 seconds to about 15 seconds; Note: Activators will cause slight loss of ultimate strength, so sample strength verification is required before use.

Q4: Can 4011 be used for medical devices requiring multiple steam autoclave sterilization?

A: 4011 can only withstand 1 cycle of steam autoclave sterilization; multiple (>3 cycles) sterilization will lead to a significant attenuation of bonding strength; for the assembly of medical devices requiring multiple sterilization, it is recommended to select LOCTITE special sterilization-grade instant adhesives and conduct process verification in advance.

Q5: How long can opened 4011 be stored under refrigerated conditions?

A: Seal the opened adhesive and store it at 2~8°C, it is recommended to use up within 1 month; check the adhesive state before use, if it becomes turbid or the viscosity increases significantly, the adhesive has aged and cannot be used continuously.

Q6: How to perform non-destructive disassembly of components bonded with 4011?

A: The cyanoacrylate adhesive layer can be softened by soaking in acetone/nitromethane; small components can be easily disassembled after 5~10 minutes of soaking; solvent can be brushed locally on large components, and disassembly can be done after the adhesive layer is softened to avoid substrate damage caused by forced breaking.

Q7: In automated production lines, how to avoid adhesive overflow after dispensing 4011?

A: The core is to control adhesive volume and bond gap: ① Use a piezo jet valve for precise micro-dispensing, set the dispensing volume to 0.001~0.01 mL according to the component size; ② Strictly control the substrate fitting gap within 0.05mm, and ensure alignment accuracy through tooling fixtures; ③ Fit the substrates immediately after dispensing to reduce adhesive flow and overflow.

Module 7: Resources & CTA

📥 Technical Document Download

•         LOCTITE® 4011™ Official Technical Data Sheet (TDS)

•         Safety Data Sheet (SDS/MSDS) (Multi-language, including environmental protection/compliance statements)

•         ASSEMBTEK Process Validation Report (Including automated dispensing parameters, cost reduction analysis for porous material bonding)

👉 [Click Here to Download the Complete Technical Documents]

🔧 Engineer Tools

•         Substrate/Dispensing Method Selection Assistant: Input substrate type, bond gap and production line takt time → automatically recommend dispensing scheme and curing time

•         Dispensing Volume Calculator: Precisely calculate the optimal adhesive volume per unit according to the bonding surface size and substrate type to avoid adhesive waste

📞 Consultation & Engineering Support

ASSEMBTEK Application Engineering Laboratory provides exclusive process support for you, free of charge throughout:

•         Free Sample Testing: Send your bonding substrates, and we will issue a customized test report on bonding strength and curing speed;

•         Remote/On-site Process Validation: Bring automated dispensing equipment to your production line to verify the compatibility of 4011™ with existing equipment in real time;

•         Mass Production Cost Reduction Solution: Analyze your current bonding process and propose cost reduction optimization schemes such as micro-dispensing and process simplification;

•         Medical Device Compliance Consultation: Provide ISO 10993 compliance and sterilization process matching suggestions for medical assembly scenarios.

[CTA Buttons]

📋Apply for Process Test Report | 🧪Free Trial Sample Application | 💬One-on-One Process Consultation

Make LOCTITE® 4011™ the "Efficient Solution" for Difficult-to-Bond Material Bonding

ASSEMBTEK – Your Exclusive Adhesive Process Engineering Partner
