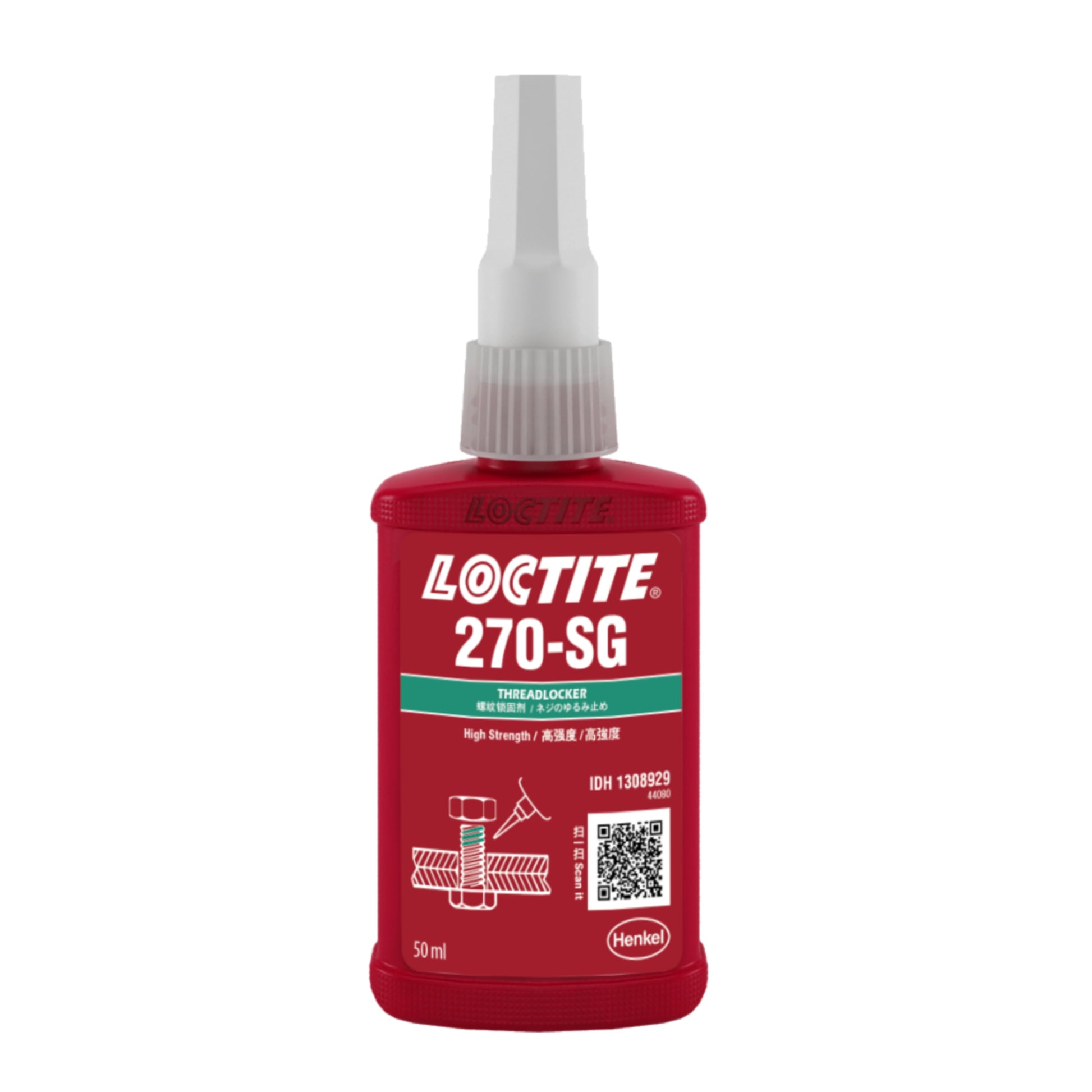

Loctite 270 SG permanent locking threadlocker

LOCTITE® 270™-SG High-Strength Anaerobic Threadlocker

High Strength · Low Viscosity · Anaerobic Curing | Suitable for Permanent Locking and Sealing of Threaded Fasteners

ASSEMBTEK Process Validated Version | Impact Resistant, Vibration Resistant, Leak Proof, Suitable for Heavy-Duty Industrial Scenarios

Reference TDS Version: September-2009 (Henkel Official Original)

Module 1: The Hero Specs

ASSEMBTEK Process Conclusion:

LOCTITE® 270™-SG is not an ordinary threadlocker, but an engineering-grade bonding solution specially designed for heavy-duty threaded fasteners. Combining its high strength, low viscosity and fluorescent detection properties, it can simultaneously achieve permanent locking, leak-proof sealing and process quality control in heavy-duty scenarios such as motor housing studs and pump body nuts, adapting to automatic mass production needs and being the preferred product for thread locking in the industrial heavy-duty field.

Module 2: Technical Data & Performance Curves

I. Typical Properties of Uncured Material (Based on TDS Testing)

II. Typical Properties of Cured Material (Cured at 22℃ for 7 Days)

III. Curing Performance & Torque Parameters (Based on TDS Testing)

Key Insights from Performance Curves

1.  Relationship between Curing Speed and Substrate: Curing speed is the fastest on carbon steel and galvanized steel, and slower on stainless steel and brass. If mass production beat is tight (initial strength required within 10 minutes), it is recommended to use activators 7471/7649 to significantly shorten the curing cycle; 2.  Impact of Gap on Curing Efficiency: When the thread gap increases from 0.05mm to 0.2mm, the shear strength establishment time is extended by 3 times. For heavy-duty scenarios, it is recommended to control the gap ≤0.15mm or use annular gluing to ensure uniform glue layer.

Module 3: Applications & Substrates

Typical Heavy-Duty Application Scenarios

Substrate Compatibility Recommendations

Process Tip: If it is necessary to use it on plastic components (such as sensor housings), a compatibility test should be conducted first; if the test passes, it is recommended to reduce the glue application amount to avoid stress caused by excessive glue layer.

Module 4: Process Engineering Insight

I. Mass Production Cost and Efficiency Optimization Tips

💡 Cost Reduction Insight: Replace Destructive Sampling with Fluorescent Property
Traditional Method: Destroy 10 workpieces per batch to test torque, resulting in serious waste and high costs;
ASSEMBTEK Solution: Use a 365nm UV online camera to detect the continuity and width of the glue line. The fluorescent intensity of 270™-SG does not attenuate within 24 hours, enabling 100% full inspection, reducing the frequency of torque testing by 90%, and saving more than 40,000 yuan per year in test workpiece costs per production line (calculated according to mass production scale).

II. Validated Automated Dispensing Parameters

III. Activator Usage Strategy (Cost Reduction + Efficiency Improvement)

1.  7649™ Activator: Suitable for inert metals such as stainless steel, which can shorten the initial curing time to 5-8 minutes and solve the bottleneck of mass production beats;
2.  7471™ Activator: Universal type, balancing curing speed and locking strength, especially suitable for galvanized parts and brass parts with higher cost performance;
3.  Cost Balance Suggestion: If it is not a beat bottleneck, prioritize adjusting the dispensing path (360° annular gluing of threads) instead of relying on activators; use activators only when the gap >0.15mm or the substrate is inert metal to reduce the cost of activator consumables.

IV. Storage and Shelf Life Optimization (Reduce Waste)

1.  Optimal Storage Conditions: 8-21℃, avoid below 8℃ (prone to precipitation) or above 28℃ (accelerate viscosity increase, affecting dispensing effect);
2.  Production Line Management: Subpackage the original packaging into 10-30mL dispensing syringes, do not pour unused glue back into the original bottle to avoid contamination; it is recommended to use the glue in the syringe within 48 hours to reduce waste due to expiration;
3.  Shelf Life Extension Tips: Keep the storage environment dry and away from light, the shelf life of unopened products can be stably maintained, and use opened products as soon as possible.

Module 5: Compliance & Quality

•         NSF P1 Certification: Suitable for sealing non-food contact surfaces in food processing areas (regional certification), specific compliance details can be consulted with the local technical service center.

•         Test Standards: All mechanical data comply with international standards such as ISO 10964 (torque testing), ISO 10123 (shear strength testing), and ISO 11359-2 (coefficient of thermal expansion testing).

•         LMS Batch Traceability: Each batch of products complies with Henkel LOCTITE® Material Specification (LMS, April 1997 version), and quality control test reports for each batch can be provided.

•         RoHS/REACH Compliance: Complies with current EU and US Restriction of Hazardous Substances directives, and specific compliance statements can be found in the SDS.

•         ASSEMBTEK Process Stability Certification: Passed 5000-hour medium aging test and -40℃～150℃ thermal cycle test, torque retention rate >80%, third-party test report available (on request).

•         Safety Compliance: The product is not recommended for use in pure oxygen or oxygen-enriched systems, and shall not be used as a sealant for chlorine or other strong oxidizing substances. For detailed safe operation requirements, see SDS.

Module 6: Expert FAQ

Q1: What is the core difference between LOCTITE 270™-SG and 262™? How to choose?
A: Both are high-strength threadlockers. The core difference lies in viscosity: 270™-SG has a low viscosity of 400-600cP, with good fluidity, suitable for small and medium-sized threads, small gap scenarios, and high efficiency in automatic dispensing; 262™ has a medium viscosity of 1200-2400cP, with strong thixotropy, suitable for large-sized threads (within M25) and anti-overflow scenarios. Selection Suggestion: Choose 270™-SG for small and medium-sized threads, small gaps, and high-speed mass production; choose 262™ for large-sized threads, anti-overflow, and heavy-duty anti-loosening.

Q2: Can 270™-SG be used for fasteners pre-coated with anti-rust oil?
A: Light anti-rust oil (cutting oil, anti-rust oil) will significantly delay curing. It is recommended to degrease with Henkel LOCTITE special cleaning agent first; if cleaning is not possible, it can be used with 7649 activator, and the torque verification cycle should be extended to 72 hours to ensure complete curing and qualified locking strength.

Q3: Will heating to 250℃ cause damage to the substrate during disassembly?
A: For carbon steel components, local heating to 250℃ (about 1 minute) will not change the metallographic structure and cause no damage; for aluminum and magnesium alloy components, it is recommended to reduce the heating temperature to 200℃, heat quickly with a hot air gun, and disassemble while hot. At this time, the torque can be reduced by 70% to avoid substrate damage.

Q4: Will the fluorescent effect attenuate over time or at high temperatures?
A: According to TDS and ASSEMBTEK aging tests, the fluorescent intensity has no obvious attenuation within 6 months at room temperature; after 1000 hours of 150℃ hot air aging, the fluorescent brightness decreases by about 15%, but it can still be clearly identified by a standard industrial UV camera without affecting online detection.

Q5: Can this product be used in oxygen systems or strong oxidizing environments?
A: It is strictly prohibited to use in pure oxygen, oxygen-enriched systems, and shall not be used as a sealant for chlorine or other strong oxidizing substances to avoid potential safety hazards; for such scenarios, it is recommended to use Henkel LOCTITE special oxygen-resistant series products.

Q6: How to optimize the dispensing path to reduce the glue cost per piece?
A: For M6-M12 specification threads, there is no need to apply glue to the entire thread. It is only necessary to apply a 360° annular glue line on the first 2-3 teeth of the meshing thread. During the tightening process, the glue will naturally penetrate into the entire thread gap, which can save 30% of the glue usage, and the locking strength fully meets the standard.

Q7: Will water-based cleaning agents affect the curing effect of 270™-SG?
A: Yes, some water-based cleaning agents may remain on the thread surface, delaying curing or reducing locking strength; it is recommended to dry thoroughly after cleaning, or use a water-based cleaning agent compatible with this product, and conduct a compatibility test in advance.
