Adhesive char—thermally degraded polymer residue—is one of the most persistent operational risks in hot melt equipment. Left unmanaged, it leads to filter clogging, nozzle obstruction, inconsistent flow rates, and unplanned downtime. For manufacturers relying on high-volume bonding operations, char-related failures directly impact yield, maintenance costs, and production continuity.
This guide outlines the root causes of char formation and provides actionable, engineering-level maintenance practices to extend system life and ensure bonding consistency.
Understanding Char Formation

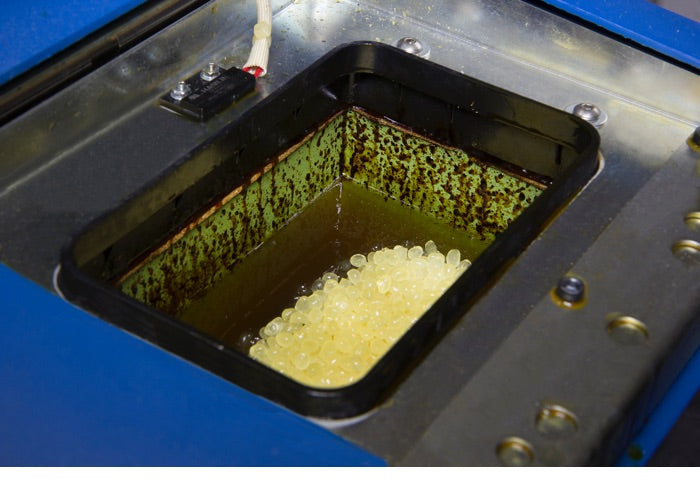

Char is the byproduct of thermal oxidation and prolonged heat exposure of hot melt adhesives. As adhesive ages in the tank, crosslinking and volatile depletion create carbonized deposits that adhere to tank walls, hoses, and internal passages. Over time, these deposits can detach and migrate downstream, clogging filters, manifolds, and dispensing nozzles.
The rate of char accumulation depends on:
-
Adhesive chemistry – Some formulations exhibit higher thermal stability than others
-
Tank residence time – Extended dwell at elevated temperatures accelerates degradation
-
Operating temperature – Exceeding the adhesive’s recommended thermal window significantly increases charring potential
-
System cleanliness – External contaminants act as nucleation sites for char formation
Tip #1: Maintain a Contamination-Free System
Foreign particles entering the adhesive stream adhere to heated surfaces and accelerate char nucleation. Implementing a strict contamination control protocol is the first line of defense.
Recommended Practices:
-
Install an automated adhesive feeder to minimize manual handling and reduce airborne particulate introduction.
-
Keep adhesive containers sealed when not in use. Do not return previously dispensed or floor-swept adhesive to the system.
-
Maintain tank lid closure during operation to prevent dust and debris ingress.
-
Use dedicated, clean tools for adhesive handling and tank maintenance.
Engineering Note: Contamination particles as small as 50 µm can act as nucleation sites for carbonized deposits, reducing the time to clog formation by up to 40% in high-flow systems.
Tip #2: Implement a Rigorous Preventive Maintenance Schedule
External cleaning alone is insufficient. Internal flushing removes accumulated char and adhesive residue before they cause functional failures.
Flushing Frequency Guidelines:
| Operating Schedule | Recommended Flush Interval |
|---|---|
| 8 hours/day (single shift) | Every 12–14 weeks |
| 16 hours/day (two shifts) | Every 8–10 weeks |
| 24 hours/day (three shifts) | Every 6–8 weeks |
Immediate flushing is required if adhesive color darkens, visible char is present, or system pressure fluctuates unexpectedly.
Additional Maintenance Actions:
-
Replace tank filters according to manufacturer specifications—typically every flush cycle or at minimum quarterly.
-
Inspect hoses, fittings, and nozzles for internal buildup or damage. Replace components showing restricted flow or thermal degradation.
-
Document maintenance events to track char accumulation trends and optimize intervals.
Tip #3: Utilize Setback/Standby Temperature Control
Prolonged high-temperature dwell accelerates adhesive degradation. Most modern hot melt systems include a programmable setback mode that reduces tank temperature during idle periods.
Best Practice:
-
Set setback temperature to 50–80°C (depending on adhesive type) during breaks, shift changes, or scheduled downtime.
-
Avoid full system shutdown when short idle periods occur; setback mode maintains fluidity while reducing thermal stress.
-
Ensure ramp-up time from setback to operating temperature aligns with production restart requirements.
Performance Impact: Proper setback usage can reduce char accumulation by up to 60% compared to systems maintained at full operating temperature continuously.
Tip #4: Operate Within Recommended Temperature Ranges
Operating temperatures directly influence adhesive stability. While increasing temperature may reduce initial melt time, it exponentially accelerates degradation and char formation.
Key Guidelines:
-
Never exceed the adhesive manufacturer’s maximum recommended tank temperature as specified in the Technical Data Sheet (TDS).
-
Operate at the lowest temperature that maintains consistent flow and bond strength.
-
Validate temperature setpoints using calibrated thermocouples at multiple points in the system—tank, hose, and gun.
-
Match adhesive selection to application—higher-thermal-stability formulations may be warranted for continuous high-temperature operation.
Engineering Note: A 10°C over-temperature can reduce the thermal stability window of many hot melt adhesives by over 50%, accelerating char formation and reducing tank life significantly.
Additional Considerations for High-Reliability Applications
For operations where downtime carries high cost—such as automated packaging lines, high-speed assembly, or regulated industries—the following measures are recommended:
-
Dual filtration: Primary tank filter (200–400 µm) and secondary inline filter (100 µm) near the dispensing head
-
Thermal imaging inspections to identify uneven heating that may cause localized degradation
-
Adhesive lot tracking to correlate char performance with specific material batches
-
Laboratory analysis of char samples to determine root cause when chronic buildup occurs
Expert Support from ASSEMBTEK
Effective char management requires a combination of proper adhesive selection, disciplined maintenance, and—when needed—process optimization support. ASSEMBTEK provides:
-
Process evaluation to identify char sources and recommend corrective actions
-
Compatible parts and consumables for leading hot melt systems
-
Material selection assistance to match adhesive thermal stability with your operating profile
-
Lab testing services to analyze adhesive performance under your specific conditions
For facilities experiencing recurring char issues or seeking to optimize preventive maintenance programs, contact our engineering team for a system assessment.
Optimize your hot melt process. Reduce downtime. Maintain bond integrity.
This article is structured for technical readers and aligns with ASSEMBTEK’s focus on precision process engineering, data-driven recommendations, and reliability-focused maintenance. Let me know if you would like to add specific product references, diagrams, or adjust any technical parameters to better match your internal standards.
source：Prevent Adhesive Char In Your Hot Melt System | APPLIED Adhesives
